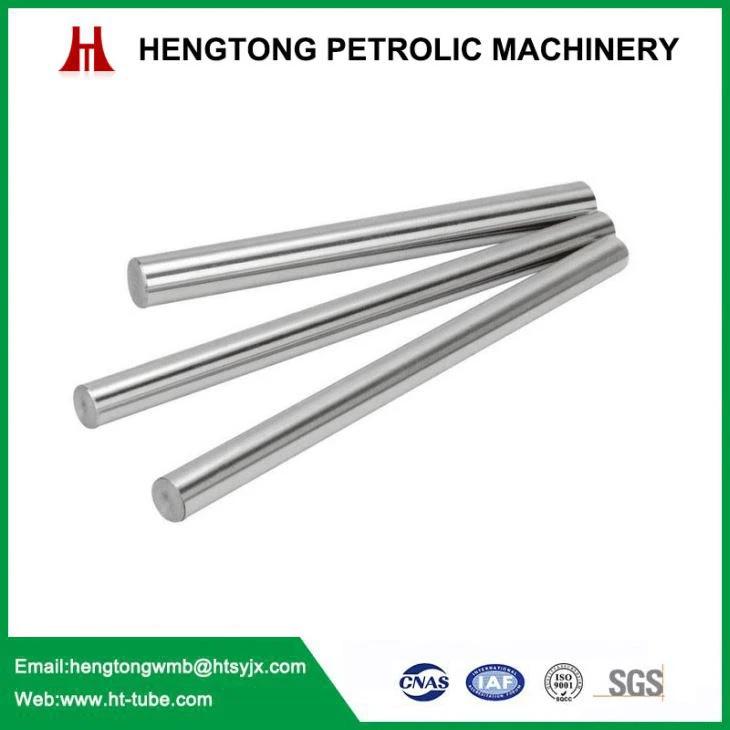

Hard Chrome Plated Compressor Piston Rod Round Bar

Hard Chrome Plated Compressor Piston Rod Round Bar

Hard chrome plated compressor piston rod round bar Introduction Hard chrome plated compressor piston rod round bars are widely used in compressor piston with hard chrome plated. Detailed Product Description 1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr 2. Ground and chrome plated 3. Diameter:...
Chat Now

Product Details

Hard chrome plated compressor piston rod round bar Introduction

Hard chrome plated compressor piston rod round bars are widely used in compressor piston with hard chrome plated.

Detailed Product Description

1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr

2. Ground and chrome plated

3. Diameter: 6mm - 1000mm

4. Length: 1000mm - 12000mm

5. Advanced inspection apparatus

Hard chrome plated compressor piston rod round bar technical parameters and details

Type:

Fittings

Model Number:

Customization Piston rod

Brand Name:

MXH

Place of Origin:

Jiangsu, China (Mainland)

Application:

Oil Pipe, hydraulic system

Usage:

Shock Absorber

Outer Diameter:

Customization

Product name:

compressor piston rod

Surface:

hard-chromed

Material:

All kind of brass,copper,stainless steel etc

Technique:

Cold Drawn

Section Shape:

round

Tolerance:

H8 H9

Electroplating hardness:

HV800-1050

Production process

Raw material –peeling – straightening – quenched and tempered – cutting – grinding – straightening – grinding – polishing – chrome plating – polishing - oiled plated - packing
