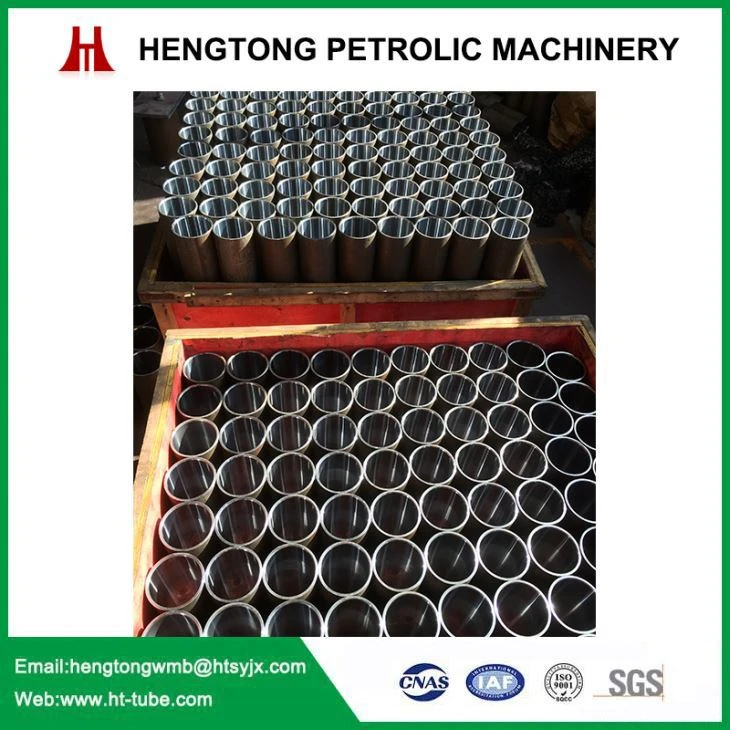

Chrome Plated Steel Pipe

Chrome Plated Steel Pipe

Chrome Plated Steel Pipes Introduction Chrome plated Honed Tubes are presicion tubes with smooth inside and with chrome plated , they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced...
Chat Now

Product Details

Chrome Plated Steel Pipes Introduction

Chrome plated Honed Tubes are presicion tubes with smooth inside and with chrome plated , they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application  standard GB/T3639-2009 , EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose. IF you are looking for chrome plated tubes for hydraulic cylinder pipes or pneumatic cylinder tubes, please contact us without any hesitation.

Chrome Plated Steel Pipe technical parameters and Details

Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.

Chrome thickness: usually 15 to 20 microns.

Original: Jiangsu, China

Certification: ISO9001.

Material: SAE1020, 20#, ST45, CK45, ST52, E355

Payment term: TT, LC

Delivery date: usually 20 to 40 days.

Packing: packed in bundle, oiled inside, with caps on both ends.

Market: Middle East/ Africa/Asia/South America/Europe/North America

MOQ:  Depends on exact size and material.

Mechanical Properties:


Final Supply
     Condition

Cold finished
     (Hard)(BK)

Cold drawn and stress-relieved (BK+S or + SR)

Hardness HB

Parameters

T.S
     obN/mm2

Elongation
     δ5%

T.S
     obN/mm2

Y.S
     OsN/mm2

Elongation
     δ5%

20# (A106B, ST45, E255)

≧550

≧8

≧520

≧375

≧12

175

45#(CK45)

≧650

≧5

/

/

/

207

Q345B(ST52, E355)

≧640

≧5

≧600

≧520

≧15

190

25Mn

≧640

≧5

≧600

≧510

≧15

195

27SiMn

≧840

≧5

≧800

≧720

≧10

230

Production process

Raw material – annealing for material of 45#, 27SiMn, 25Mn – Acid cleaning – parkerizing & Saponifying – cold drawn – leveling – saw off bad section – stress relieving – leveling –honing or skiving – chrome plating - inspection – oiled plated - packing

Production Process(001).jpg

Quality control

1. We only buy raw material from famous tube factory, and Checking raw material quality before production.

2. We check the tube ID tolerance, OD tolerance and surface after cold drawn one by one.

3. We inspect the honed tube inside tolerance and surface again one by one after honing or skiving.

4. We measure the chrome thickness .

Our team.jpg
