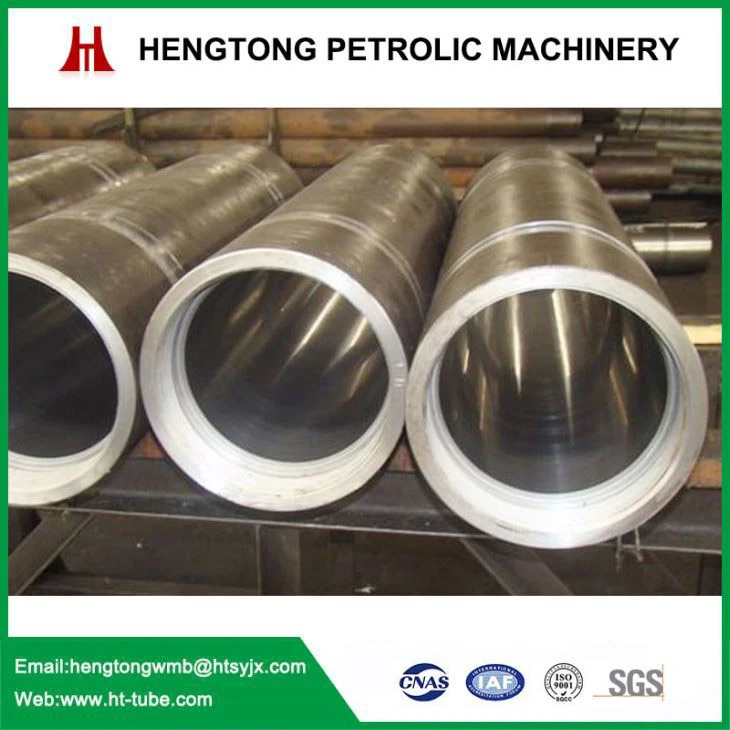

Hard Chrome Plated Honed Cylinder Tubing Introduction

The surface hardness of Hard Chrome Plated Honed Cylinder Tubing is large. The characteristic is anticorrosive , acid - resistant, reflective strong. The strength of hard plated layer decreases with the increase of thickness, and the bonding strength of chrome-plated layer and matrix is higher than that of the crystal, while the tensile strength and fatigue strength decrease with the increase of plating thickness. Therefore, the thickness of chromium plating should generally be less than 0.3mm.

Technical parameters and Details


Size and Tolerance


Hard Chrome Plated Honed Cylinder Tubing characteristics

1. The inside tolerance could up to H8.

2. Honing Inside roughness could reach to Ra 0.4um. Skiving inside could reach to Ra 0.2 um.

3.  ID size from 50 to 280mm, OD size from 60 to 370mm, totally has more than 200 sizes.

4.  Length could be fixed length of random length.

5.  Inside chrome plated is for optional.
