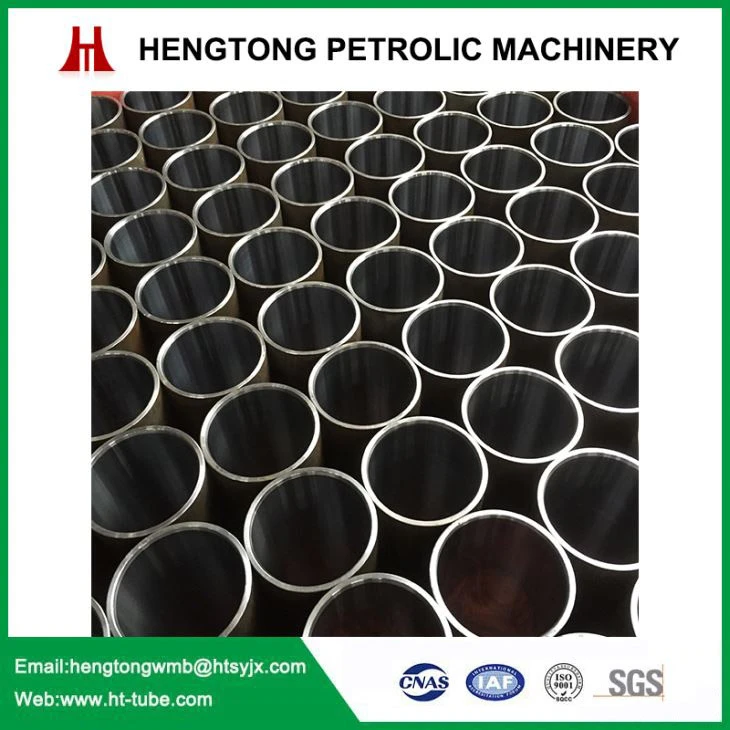

Hard Chrome Plated Honed Tubes Introduction
Chrome plated Honed Tubes are presicion tubes with smooth inside and with chrome plated , they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009 , EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose. IF you are looking for chrome plated tubes for hydraulic cylinder pipes or pneumatic cylinder tubes, please contact us without any hesitation.
Hard Chrome Plated Honed Tube technical parameters and Details
Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.
Chrome thickness: usually 15 to 20 microns.
Original: Jiangsu, China
Certification: ISO9001.
Material: SAE1020, 20#, ST45, CK45, ST52, E355
Payment term: TT, LC
Delivery date: usually 20 to 40 days.
Packing: packed in bundle, oiled inside, with caps on both ends.
Market: Middle East/ Africa/Asia/South America/Europe/North America
MOQ: Depends on exact size and material.
Inside hard chrome plated honed tube for hydraulic cylinder
(Usually H8 ID tolerance, Roughness 0.2-0.4 um, BKS/ SR condtion, ID40-400mm)
Material & Chemical Composition:
DIN2391 standard ST52, EN10305 standard E355, 16Mn, ASTM A106B, C20/20#, CK45
Material | C | Si | Mn | S(≤) | P(≤) | Cr | Ni | Mo | other |
A106B / C20# | 0.17—0.23 | 0.17—0.37 | 0.35—0.65 | 0.035 | 0.035 | ≤0.25 | ≤0.30 | Cu≤0.25 | |
CK45# | 0.42—0.50 | 0.17—0.37 | 0.50—0.80 | 0.035 | 0.035 | ≤0.25 | ≤0.30 | Cu≤0.25 | |
Q345B | ≤0.20 | ≤0.55 | 1.00—1.60 | 0.040 | 0.040 | V:0.02-0.15 | Nb:0.015-0.06 | Ti:0.02-0.20 | Alt≥0.015 |
ST52 E355 16Mn | ≤0.20 | ≤0.55 | 1.00—1.60 | 0.045 | 0.045 | V:0.02-0.15 | Nb:0.015-0.06 | Ti:0.02-0.20 | 16Mn |
25Mn | 0.22—0.30 | 0.17—0.37 | 0.70—1.00 | 0.035 | 0.035 | ≤0.25 | ≤0.25 | ||
27SiMn | 0.24—0.32 | 1.10—1.40 | 1.10—1.40 | 0.030 | 0.030 | ||||
42SiMn | 0.39—0.45 | 1.10—1.40 | 1.10—1.40 | 0.030 | 0.030 | ||||
42CrMo | 0.38—0.45 | 0.17—0.37 | 0.50—0.80 | 0.025 | 0.025 | 0.90—1.20 | 0.15—0.25 |
Usual Tube Sizes
Most usual sizes in our factory:
40*50 | 90*110 | 140*170 | 190*215 |
40*55 | 95*110 | 145*170 | 190*220 |
50*60 | 95*115 | 150*170 | 190*225 |
50*65 | 100*110 | 150*175 | 200*220 |
55*70 | 100*114 | 150*180 | 200*225 |
60*70 | 100*115 | 155*180 | 200*230 |
60*75 | 100*120 | 160*175 | 200*245 |
60*78 | 100*125 | 160*180 | 200*250 |
63*73 | 105*125 | 160*185 | 220*250 |
63*75 | 110*125 | 160*190 | 220*270 |
63*76 | 110*130 | 160*195 | 225*250 |
63*78 | 115*130 | 165*190 | 240*273 |
65*80 | 115*135 | 165*205 | 250*290 |
70*80 | 120*140 | 170*200 | 250*300 |
70*82 | 125*140 | 180*200 | 260*300 |
70*85 | 125*145 | 180*205 | 280*323 |
70*90 | 125*150 | 180*210 | 280*355 |
75*90 | 130*150 | 180*215 | 300*350 |
80*92 | 130*155 | 180*220 | 200*213 |
80*95 | 130*160 | 185*205 | 200*216 |
80*100 | 135*160 | 185*215 | 250*266 |
85*100 | 140*160 | 185*220 | 300*320 |
90*105 | 140*165 | 190*210 | 350*370 |
