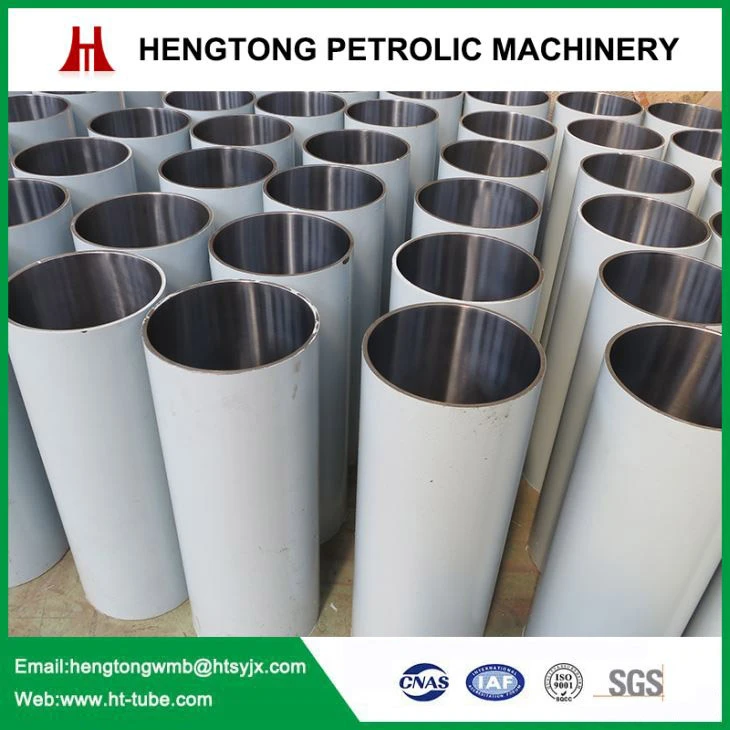

S45C Chrome Plated Honed Tube

S45C Chrome Plated Honed Tube

S45C Chrome Plated Honed Tube Introduction Chrome plated Honed Tubes are presicion tubes with smooth inside and with chrome plated , they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced...
Chat Now

Product Details

S45C Chrome Plated Honed Tube Introduction

Chrome plated Honed Tubes are presicion tubes with smooth inside and with chrome plated , they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application  standard GB/T3639-2009 , EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose. IF you are looking for chrome plated tubes for hydraulic cylinder pipes or pneumatic cylinder tubes, please contact us without any hesitation.

S45C Chrome Plated Honed Tubes technical parameters and Details

Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.

Chrome thickness: usually 15 to 20 microns.

Original: Jiangsu, China

Certification: ISO9001.

Material: SAE1020, 20#, ST45, CK45, ST52, E355

Payment term: TT, LC

Delivery date: usually 20 to 40 days.

Packing: packed in bundle, oiled inside, with caps on both ends.

Market: Middle East/ Africa/Asia/South America/Europe/North America

MOQ: Depends on exact size and material.

Size and Tolerance:

Working

method

Cylinder ID (mm)

Length

(m)

Straightness

(mm/m)

Tolerance

on ID

Tolerance

on WT

Roughness

(μm)

Cold drawn

40-320

≤12M

0.2-0.5

/

±5%

0.8-1.6

Cold rolling

30-100

≥12M

0.2-0.5

/

±5%

0.8-1.2

cold drawn-

honed

40-500

8M

0.2-0.3

H8-H9

±5%

0.2-0.8

Cold drawn-skived

40-400

7M

0.2-0.3

H8-H9

±5%

≤0.4

Deep hole

boring- honed

320-400

8M

0.2-0.3

H7-H9

±8%

≤0.8

Deep hole

boring- skived

320-400

7M

0.2-0.3

H8-H9

±8%

≤0.4

Hard Chrome Plated Steel Tube.jpg

Chrome plated Honed Tubes characteristics

1. The inside tolerance could up to H8.

2. Honing Inside roughness could reach to Ra 0.4um. Skiving inside could reach to Ra 0.2 um.

3. ID size from 50 to 280mm, OD size from 60 to 370mm, totally has more than 200 sizes.

4. Length could be fixed length of random length.

5. Inside chrome plated is for optional.
