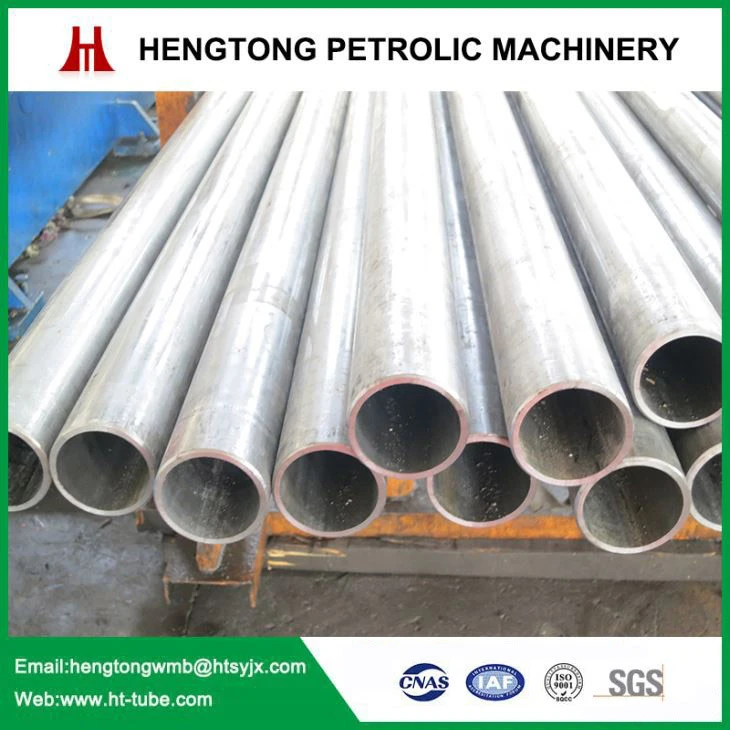

Seamless Cold Drawn Introduction
WUXI HENGTONG PETROLIC MACHINERY manufactures Seamless Cold Drawn, ready to hone tubes, honed tubes, skived and roller burnished tubes, chrome bar, piston rods and high-precision cold-drawn steel tubes, We are well-equipped with 300 ton, 150 ton, 65 ton, 20 ton of cold drawing machine,9 meters CNC boring machines, 20 sets honing machines , one set furnace and advanced quality testing equipment, which combine cold drawn, cold-rolled, heat treatment and traditional machining process.
Seamless Cold Drawn Technical Parameters and Details
Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.
Original: Jiangsu, China
Certification: ISO9001.
Material: SAE1020, 20#, ST45, CK45, ST52, E355
Payment term: TT, LC
Delivery date: usually 20 to 40 days.
Packing: packed in bundle, with caps on both ends.
Market: Middle East/ Africa/Asia/South America/Europe/North America
MOQ: Depends on exact size and material.
Size and Tolerance:
Working method | Cylinder ID （mm） | Length （m） | Straightness （mm/m） | Tolerance on ID | Tolerance on WT | Roughness （μm） |
Cold drawn | 40-320 | ≤12M | 0.2-0.5 | / | ±5% | 0.8-1.6 |
Cold rolling | 30-100 | ≥12M | 0.2-0.5 | / | ±5% | 0.8-1.2 |
cold drawn- honed | 40-500 | 8M | 0.2-0.3 | H8-H9 | ±5% | 0.2-0.8 |
Cold drawn-skived | 40-400 | 7M | 0.2-0.3 | H8-H9 | ±5% | ≤0.4 |
Deep hole boring- honed | 320-400 | 8M | 0.2-0.3 | H7-H9 | ±8% | ≤0.8 |
Deep hole boring- skived | 320-400 | 7M | 0.2-0.3 | H8-H9 | ±8% | ≤0.4 |
Quality control
1. We only buy raw material from famous tube factory, and Checking raw material quality before production.
2. We check the tube ID tolerance, OD tolerance and surface after cold drawn one by one.
After-sales service:
1. Where to buy our products for one year warranty and life long maintenance.
2. 24-hour telephone service.
3. A large stock of components and parts, easily-worn parts.
Our Advantage
1. We has two factories of 40000 square meters and totally 150 employees to promise the Honed Tubes In Stock best quality control;
2. According to the cylinder pressure and inside diameter size ,different hydraulic cylinder honed tube Would be choosed ;
3. Our motivation is --- customers’ satisfaction smile;
4. Our believing is --- pay attention to every detail;
5. Our wish is ----perfect co-operation.
