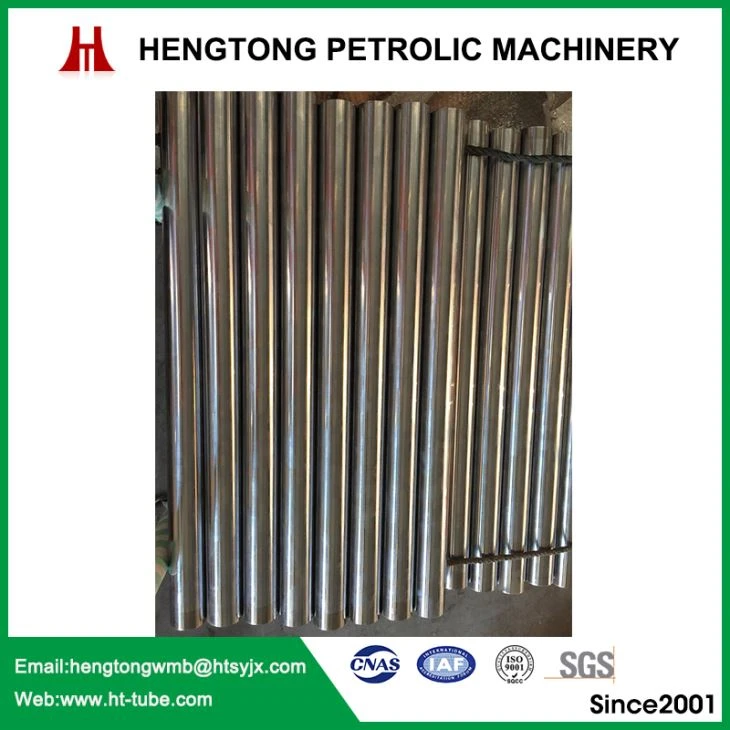

1045 Steel Piston Rod Hard Chrome Plated
Product Details
We actively listen to our customers in order to improve and refine our Honed tubes, Ck20 Honed Pipe, 16Mn Hydraulic Cylinder Tube and services to better meet their expectations. We sincerely welcome domestic and foreign customers to visit our company, and maintain long-term contact and cooperation with us. We are eager to cooperate with foreign companies which care much on the real quality, stable supply, strong capability and good service. All along, we closely follow the development trend of the industry and have a deep understanding of the current situation and trend of the industry.
Chrome Plated Rod Introduction
Chrome plated bars can be divided into standard bar, induction bar and tempered & quenched bar. Surface of bar goes through special grinding and hard chrome plating process, and then mirror polishing. They always work together with precision tubes.
Chrome Plated Rod technical parameters and Details
Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.
Original: Jiangsu, China
Certification: ISO9001.
Material: CK45, ST52, E355, 42CrMo4
Payment term: TT, LC
Delivery date: usually 20 to 40 days.
Packing: each packed in peper sleeve, and then in bundle.
Market: Middle East/ Africa/Asia/South America/Europe/North America
MOQ: Depends on exact size and material.
1.Chemical Properties:
Material | C% | Mn% | Si% | S% | P% | V% | Cr% |
CK45 | 0.42-0.50 | 0.50-0.80 | ≤0.04 | ≤0.035 | 0.035 | ≤ 0.25 | |
ST52 | ≤0.22 | ≤1.6 | ≤0.55 | ≤0.04 | ≤0.04 | ||
20MnV6 | 0.16-0.22 | 1.30-1.70 | 0.10-0.50 | ≤0.035 | ≤0.035 | 0.10-0.20 | ≤0.30 |
42CrMo4 | 0.38-0.45 | 0.60-0.90 | 0.15-0.40 | ≤0.035 | ≤0.035 | 0.07-0.12 | 0.90-1.20 |
40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | 0.80-1.10 |
2. MECHANCIAL PROPERTIES
Material | T.S N/MM2 | Y.S N/MM2 | E%(MIN) | CHARPY | CONDITION |
CK45 | 610 | 355 | 15 | >41J | NORMALIZE |
CK45 | 800 | 630 | 20 | >41J | Q + T |
ST52 | 500 | 355 | 22 | NORMALIZE | |
20MnV6 | 750 | 590 | 12 | >40J | NORMALIZE |
42CrMo4 | 980 | 850 | 14 | >47J | Q + T |
40Cr | 1000 | 800 | 10 | Q + T |
3. SUPPLY CONDITION
Ground and chrome plated , induction, quenched and tempered
4. CHROME THICKNESS
20 to 30 micron
5. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micro
6. TOLERANCES ON DIA
ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
≤0.2MM/M
9. SURFACE HARDNESS
850-1150HV (vickers 100g)
10.COHESION
No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling in water)
11 .POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12 CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-72hours
Results evaluation according to ISO 4540 RATING 7-10
13. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
