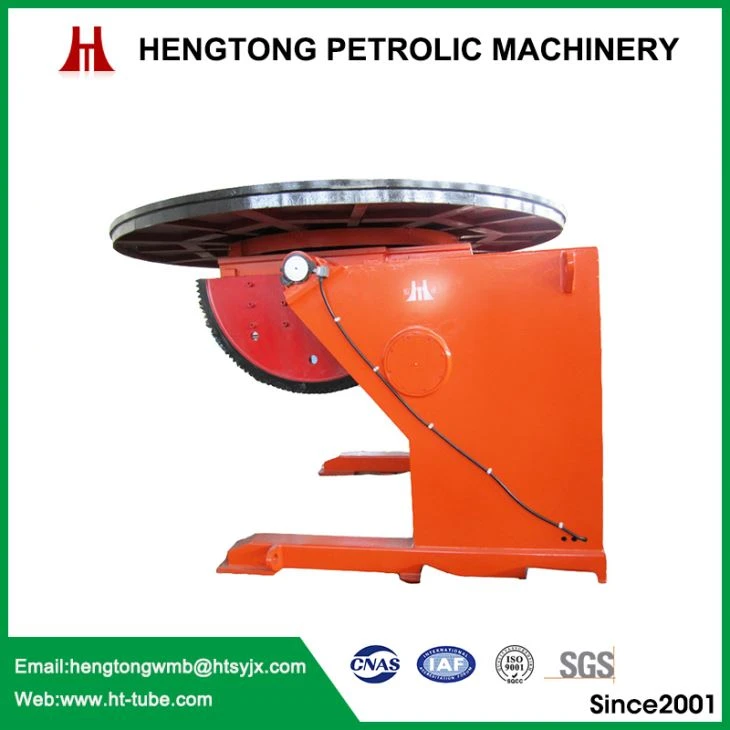

300kg Automaitic Welding Positioner/Welding Turntable

In the market of opportunities and challenges, we rely on a wide range of solid customer base and competitive prices to provide customers with Self Aligned Tank Welding Roller, Hydraulic Srb Tube, 4330V seamless pipe for downhole motor. The company's standardized operation, scientific management, efficient, pragmatic and competent organization have laid a solid foundation for the company's future development. In the face of new historical opportunities and challenges, the pursuit of excellence also represents our ambition and mission to create the future. Our production have been exported to more than 30 countries and regions as first hand source with lowest price. Our company's internal management focuses on the effective development and rational use of human resources.

Welding Positioner Turntable Introduction

1.Welding positioner make the workpiece in best welding positon and is mostly used for shafts,plates and cylinders.

2.The worktable is driven by motor,it can do 360° rotating movement and 120° tilting movement,and can even lift according to your requirement.

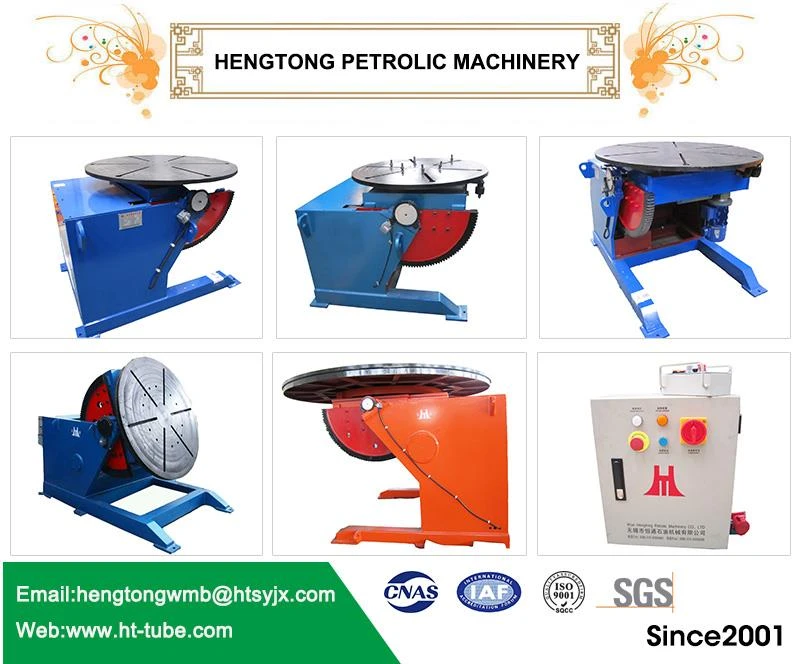

3.It has rollover type,head to tail type,double rotating type and so on.

4.There are T-slots for clamping and positioning of vessels.

5.Hand-control box is offered,being convenient to operate.

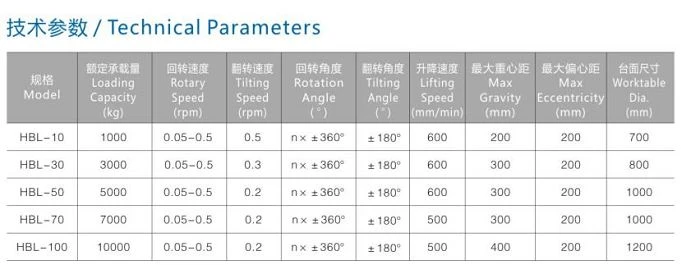

Welding Positioner Turntable Details

Type: Welding Positioner

Condition: New

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Hengtong

Model Number: ZHB

Usage: positioning the workpiece

Dimensions: depends

Weight: 100~8000kg

Certification: CE,SGS,ISO9001

After-sales Service Provided: Engineers available to service machinery overseas

Name: China universal hydraulic lift welding positioner turntable

Loading capacity: 100~50000kg

Rotary speed: 0.09-0.9rmp

Tilting speed: depend

Worktable tilting angle: 0-120 degree

Worktable diameter: 400~4000mm

Rotation power: 0.18~11kw

Tilting power: 0.18~18.5kw

Speed adjust: VFD

Treatment: Sand blast

Company Information

Wuxi Hengtong Petrolic Machinery is founded in 1997 and is located in beautiful Wuxi City,Jiangsu Province.Hengtong concentrate upon research,manufacturing and sale as a whole. Now

it has more than 200 employees and covers an area of 15000 square meters.

Our main product includes welding rotator(turning roll),welding positioner(turning table),welding manipulator(colum and boom),wind power production line,H steel production line,CNC equipments etc.

Hengtong also gets ISO9001,SGS and CE certification.Our motivation is customers' satisfication;Our belief is paying attention to every detail;Our wish is perfect cooperation.

We take leading technology, excellent quality, and reasonable price as our survival tenet, and pursue 100% customer satisfaction as our goal to provide customers with the most competitive 300kg Automaitic Welding Positioner/Welding Turntable. Excellent quality comes from our adherence to every detail, and customer satisfaction comes from our sincere dedication. Our company sets up several departments, including production department, sales department, quality control department and sevice center, etc.
