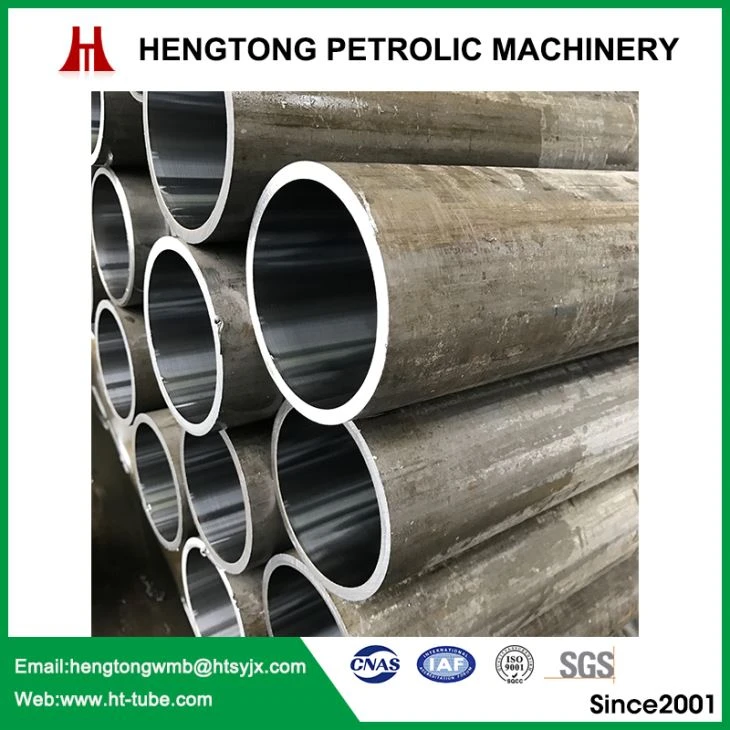

ASTM A519 SAE 1020 AISI 1020 Cold Drawn Seamless Precision Honed Carbon Steel Tubing for Hydraulic Cylinder Barrel
Product Details
We can easily normally satisfy our respected buyers with our excellent high-quality, excellent selling price and good service due to we've been far more expert and more hard-working and do it in cost-effective way for Chrome Plated Steel Bar, Ck20 Steel Pipe, S45C Honed Steel Pipe. We have been making great efforts to achieve this win-win situation and sincerely welcome you to join us. We believe that through unremitting pursuit and hard work, we will definitely win the support of customers and achieve mutual benefit.

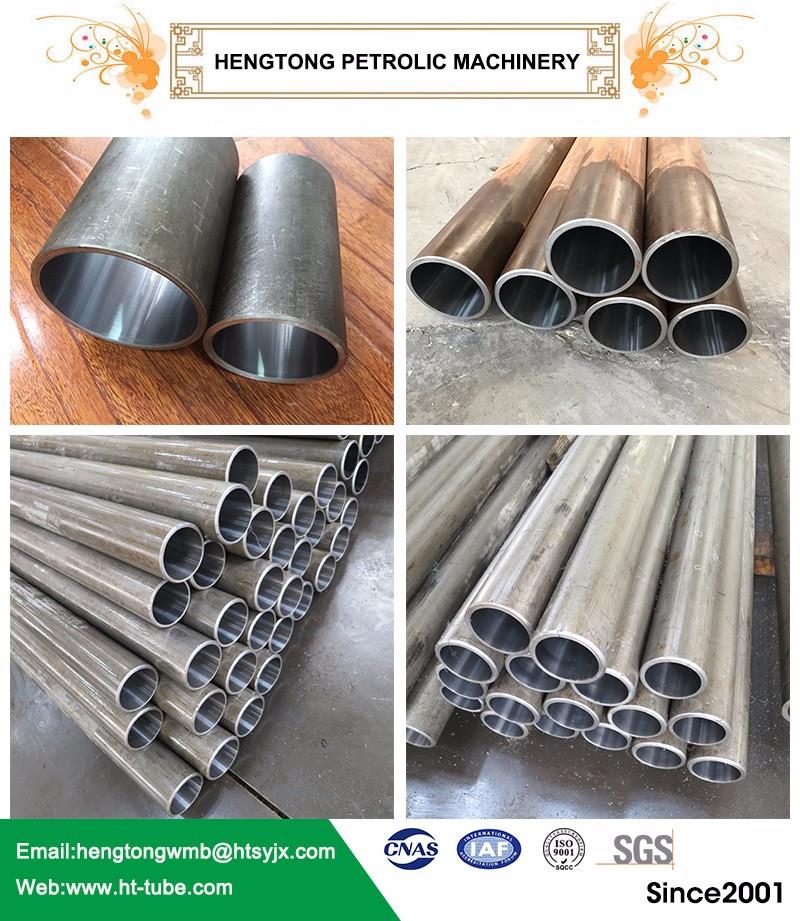

Precision Seamless Steel Honing Pipes Introduction
Honed Tubes are presicion tubes with smooth inside, they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009,EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose.
Precision Seamless Steel Honing Pipe technical parameters and Details
Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.
Original: Jiangsu, China
Certification: ISO9001.
Material: SAE1020, 20#, ST45, CK45, ST52, E355
Payment term: TT, LC
Delivery date: usually 20 to 40 days.
Packing: packed in bundle, oiled inside, with caps on both ends.
Market: Middle East/ Africa/Asia/South America/Europe/North America
MOQ: Depends on exact size and material.
Size and Tolerance:
Working method | Cylinder ID （mm） | Length （m） | Straightness （mm/m） | Tolerance on ID | Tolerance on WT | Roughness （μm） |
Cold drawn | 40-320 | ≤12M | 0.2-0.5 | / | ±5% | 0.8-1.6 |
Cold rolling | 30-100 | ≥12M | 0.2-0.5 | / | ±5% | 0.8-1.2 |
cold drawn- honed | 40-500 | 8M | 0.2-0.3 | H8-H9 | ±5% | 0.2-0.8 |
Cold drawn-skived | 40-400 | 7M | 0.2-0.3 | H8-H9 | ±5% | ≤0.4 |
Deep hole boring- honed | 320-400 | 8M | 0.2-0.3 | H7-H9 | ±8% | ≤0.8 |
Deep hole boring- skived | 320-400 | 7M | 0.2-0.3 | H8-H9 | ±8% | ≤0.4 |
Precision Seamless Steel Honing Pipe Specifications
Cylinder ID: 40mm-400mm Thickness:≥4mm
Material:20#(A106B,C20),45#(CK45),16Mn(ST52,E355),25Mn,27SiMn
Standard:GB/T8713-88 ISO4394/1-1980(EN0305,DIN2391)
Product | seamless steel tube | |
Standard | EN10305/DIN2391 | |
ISO4394/1-1980 | ||
GB/T8713-88 | ||
Material | China | 20# 45#(CK45) 16Mn(ST52) 25Mn 27SiMn etc. |
German | St42-2 DIN1626,St45-8 DIN17175,St45-4 DIN1629,CK45,St52 DIN1629 | |
American | ASTM A53-B,ASTM A106-B,ASTM A178-C,ASTM A1045,ASTM A210-C etc. | |
Length | as your requirements | |
Surface treatment | Black painting, black varnish, transparent oil, hot galvanized, 3PE, epoxy coating,BE,PE.etc. | |
Technique | Seamless & welded | |
Usage | 1.hydraulic cylinder /pneumatic cylinder | |
Package | 1. Bundle packing. | |
MOQ | as your needs | |
We always adhere to the research and development of independent intellectual property products to manufacture ASTM A519 SAE 1020 AISI 1020 Cold Drawn Seamless Precision Honed Carbon Steel Tubing for Hydraulic Cylinder Barrel of the leading level in the industry. The responsibilities and missions are the sources of motivation for the company's continuous development or advancement. We have a young, energetic and innovative team, and implement a scientific quality management system to strictly inspect and monitor product quality.
