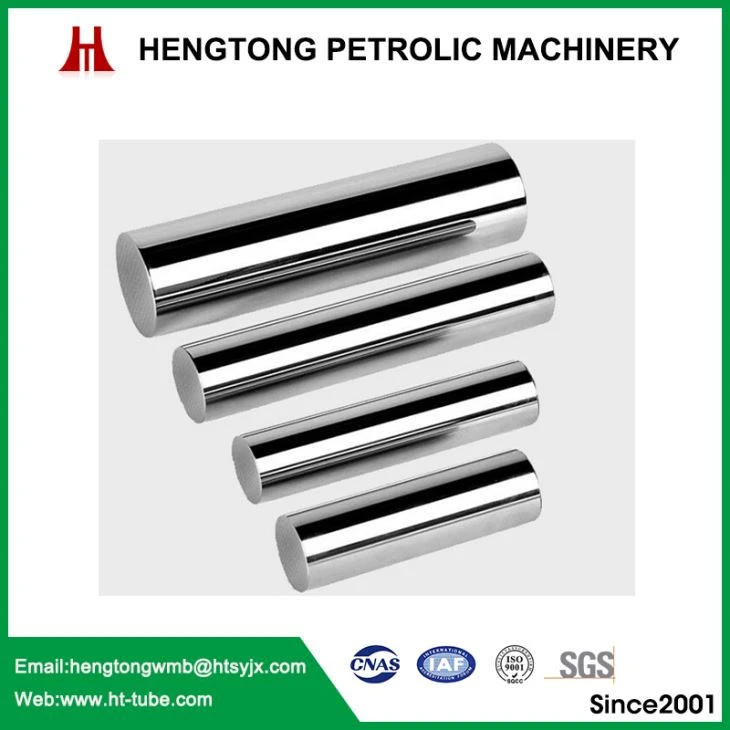

C45 Steel Grade Turned and Ground Chromed Rod
Product Details
Facing the new challenges and opportunities in the future, we will make every effort to promote innovation and constantly surpass ourselves, actively participate in international and domestic competition, and strive to become a Hydraulic Cylinder Pipe, Turning rolls, Seamless Steel Tube For Hydraulic Cylinder manufacturer trusted by customers ! We strive to improve customer efficiency to save costs for customers. We have first-class organization and management, strong technical strength, modern production technology and equipment. We always adhere to the customer-first attitude, serve every customer with a smile, strictly control the quality, and be responsible, so that the products can be delivered to customers safely.
Quenched And Tempered Piston Rod Introduction
WUXI HENGTONG PETROLIC MACHINERY manufactures pre honed tubes, ready to hone tubes, honed tubes, skived and roller burnished tubes, chrome bar, piston rods and high-precision cold-drawn steel tubes, We are well-equipped with 300 ton, 150 ton, 65 ton, 20 ton of cold drawing machine,9 meters CNC boring machines, 20 sets honing machines , one set furnace and advanced quality testing equipment, which combine cold drawn, cold-rolled, heat treatment and traditional machining process.
Chrome plated bar technical parameters and Details
Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.
Original: Jiangsu, China
Certification: ISO9001.
Material: CK45, ST52, E355, 42CrMo4
Payment term: TT, LC
Delivery date: usually 20 to 40 days.
Packing: each packed in peper sleeve, and then in bundle.
Market: Middle East/ Africa/Asia/South America/Europe/North America
MOQ: Depends on exact size and material.
Mechanical Properties:
Material | T.S (MPA) | Y.S (MPA) | Elongation % | CHARPY | CONDITION |
CK45 | ≥610 | ≥355 | ≥15 | >41J | NORMALIZE |
CK45 | ≥800 | ≥630 | ≥20 | >41J | Q + T |
ST52 | ≥500 | ≥355 | ≥22 | NORMALIZE | |
20MnV6 | ≥750 | ≥590 | ≥12 | >40J | NORMALIZE |
42CrMo4 | ≥980 | ≥850 | ≥14 | >47J | Q + T |
40Cr | ≥1000 | ≥800 | ≥10 | Q + T |
Chemical Properties:
Material | C% | Mn% | Si% | S% | P% | V% | Cr% |
CK45 | 0.42-0.50 | 0.50-0.80 | ≤0.04 | ≤0.035 | 0.035 | ≤ 0.25 | |
ST52 | ≤0.22 | ≤1.6 | ≤0.55 | ≤0.04 | ≤0.04 | ||
20MnV6 | 0.16-0.22 | 1.30-1.70 | 0.10-0.50 | ≤0.035 | ≤0.035 | 0.10-0.20 | ≤0.30 |
42CrMo4 | 0.38-0.45 | 0.60-0.90 | 0.15-0.40 | ≤0.035 | ≤0.035 | 0.07-0.12 | 0.90-1.20 |
40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | 0.80-1.10 |

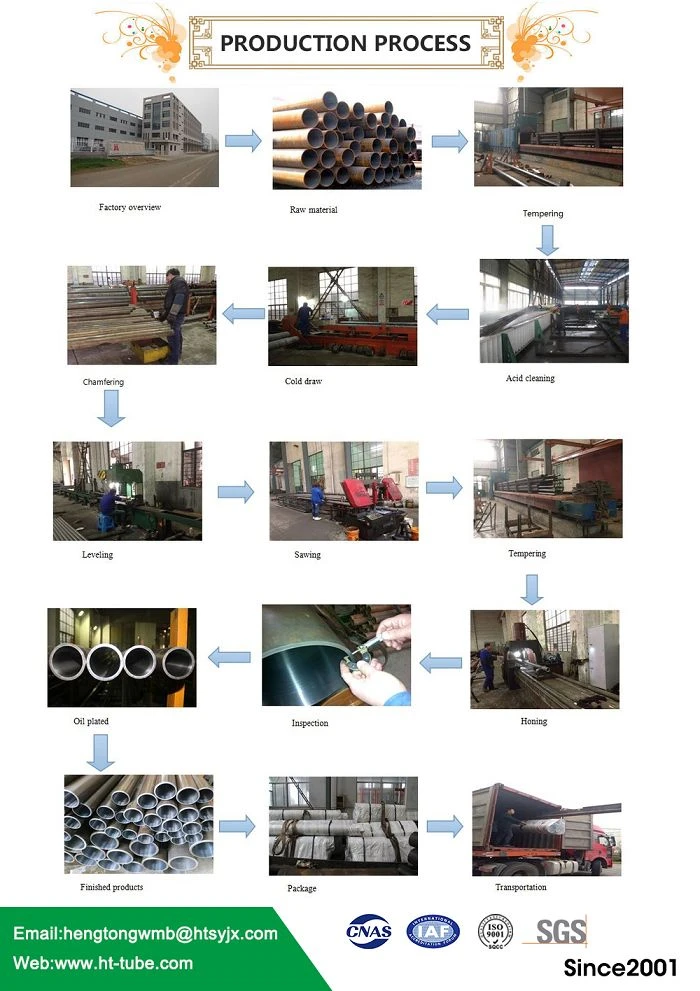

Production process
Raw material –peeling – straightening – quenched and tempered – cutting – grinding –straightening – grinding – polishing – chrome plating – polishing - oiled plated - packing
Our Advantage
1. We has two factories of 40000 square meters and totally 150 employees to promise the Honed Tubes In Stock best quality control;
2. According to the cylinder pressure and inside diameter size ,different hydraulic cylinder honed tube Would be choosed ;
3. Our motivation is --- customers’ satisfaction smile;
4. Our believing is --- pay attention to every detail;
5. Our wish is ----perfect co-operation.
Our services
1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.
We rely on high-quality staff, high-precision production equipment and strict testing methods to produce high-quality C45 Steel Grade Turned and Ground Chromed Rod. We insist on serving our clients well by high quality products with perfect designs at favorable price to occupy the market. The continuous expansion of the overall industry sector has brought us market opportunities and challenges, and created a lot of space for enterprises to enhance our value at the same time.
