Cold Drawn Seamless Honed Tubes Factory From China
Product Details
Since our establishment, we have always adhered to the policy of 'high technology, high quality and high service', and with professional and unique innovative ideas, we have grown rapidly in the industry of Steel Honed Tube, SRB pipe, 4140 drilling tube in China. We adhere to the enterprise tenet of quality-oriented, enterprising and creating first-class brand, and seize the opportunity given by the times to create a more brilliant tomorrow. We always adhere to the principle of credit management and quality first to satisfy our customers' requirements. Meantime, we will dedicate to continuous innovation to promote ourselves. We adhere to the business philosophy of 'innovation, integration, pragmatism and dedication' to promote the continuous development of the company. We also maintain the vitality of the enterprise with continuous improvement of quality management standards.

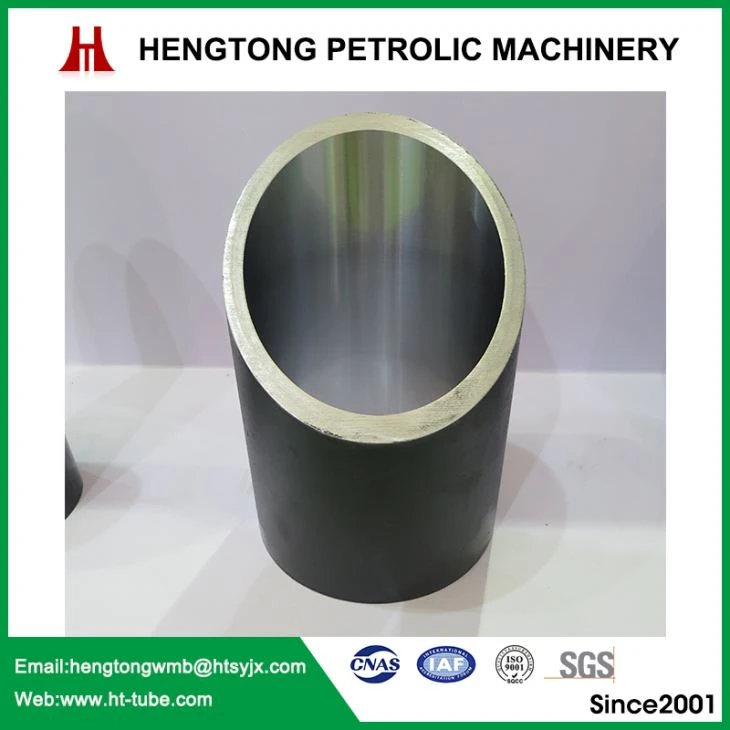

Cold Drawn Honed Tube Introduction
WUXI HENGTONG PETROLIC MACHINERY manufactures Cold Drawn Honed Tubes, ready to hone tubes, honed tubes, skived and roller burnished tubes, chrome bar, piston rods and high-precision cold-drawn steel tubes, We are well-equipped with 300 ton, 150 ton, 65 ton, 20 ton of cold drawing machine,9 meters CNC boring machines, 20 sets honing machines , one set furnace and advanced quality testing equipment, which combine cold drawn, cold-rolled, heat treatment and traditional machining process.

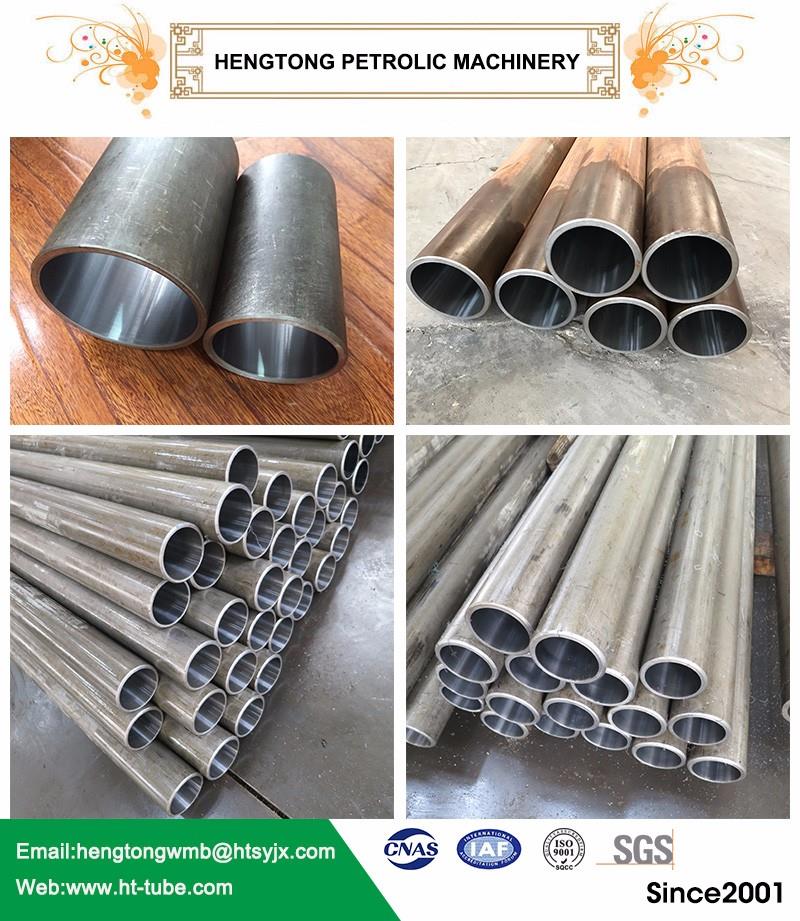

Cold Drawn Honed Tube detail
Application: producing of hydraulic/ pneumatic cylinders, pumps, motor shells, transmission shafts and transmission roller steel pipes.
Original: Jiangsu, China
Certification: ISO9001.
Material: SAE1020, 20#, ST45, CK45, ST52, E355
Payment term: TT, LC
Delivery date: usually 20 to 40 days.
Packing: packed in bundle, oiled inside, with caps on both ends.
Market: Middle East/ Africa/Asia/South America/Europe/North America
MOQ: Depends on exact size and material.
Cold Drawn Honed Tube Specifications
1. CHEMICAL COMPOSITION
|
Material |
C% |
Mn% |
Si% |
S% |
P% |
V% |
Cr% |
|
CK45 |
0.42-0.50 |
0.50-0.80 |
≤0.04 |
≤0.035 |
0.035 |
≤ 0.25 |
|
|
ST52 |
≤0.22 |
≤1.6 |
≤0.55 |
≤0.04 |
≤0.04 |
||
|
20MnV6 |
0.16-0.22 |
1.30-1.70 |
0.10-0.50 |
≤0.035 |
≤0.035 |
0.10-0.20 |
≤0.30 |
|
42CrMo4 |
0.38-0.45 |
0.60-0.90 |
0.15-0.40 |
≤0.035 |
≤0.035 |
0.07-0.12 |
0.90-1.20 |
|
40Cr |
0.37-0.45 |
0.50-0.80 |
0.17-0.37 |
≤0.035 |
≤0.035 |
0.80-1.10 |
2. MECHANCIAL PROPERTIES
|
Material |
T.S N/MM2 |
Y.S N/MM2 |
E%(MIN) |
CHARPY |
CONDITION |
|
CK45 |
610 |
355 |
15 |
>41J |
NORMALIZE |
|
CK45 |
800 |
630 |
20 |
>41J |
Q + T |
|
ST52 |
500 |
355 |
22 |
NORMALIZE |
|
|
20MnV6 |
750 |
590 |
12 |
>40J |
NORMALIZE |
|
42CrMo4 |
980 |
850 |
14 |
>47J |
Q + T |
|
40Cr |
1000 |
800 |
10 |
Q + T |
3. SUPPLY CONDITION
Ground and chrome plated , induction, quenched and tempered
4. CHROME THICKNESS
20 to 30 micron
5. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micro
6. TOLERANCES ON DIA
ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
≤0.2MM/M
9. SURFACE HARDNESS
850-1150HV (vickers 100g)
10.COHESION
No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling in water)
11 .POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12. CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-72hours
Results evaluation according to ISO 4540 RATING 7-10
13. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve

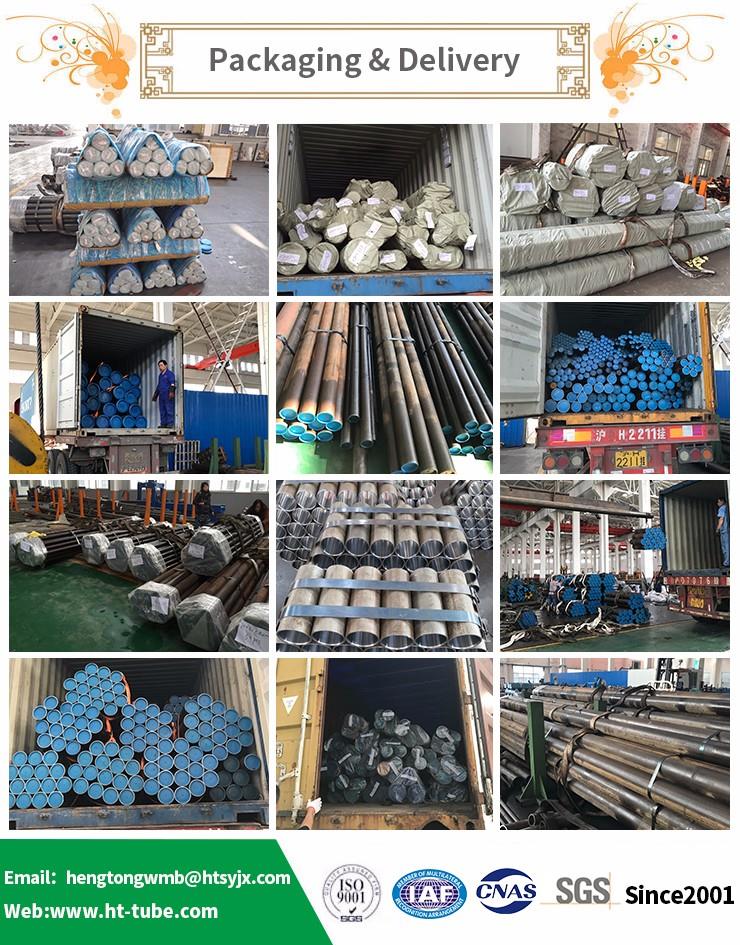

Packaging & Delivery|
Packaging Details |
in bundle, with plastic caps, anti-rusted oiled, with woven bags |
|
Delivery Time |
within 20 days |
We use our innovative technology to continue to provide customers with a more satisfactory complete set of Cold Drawn Seamless Honed Tubes Factory From China solutions. You probably feel secure and satisfy when copperate with us. We will provide customers with affordable and perfect unified design solutions, bring good market effects to enterprises, and assist more business partners in the rapid and healthy development.
