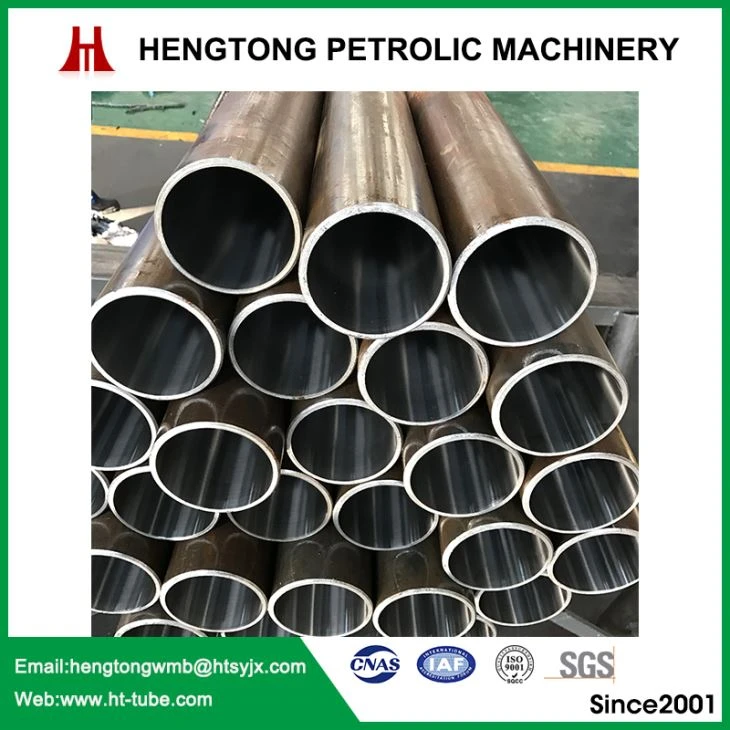

Cold Drawn Seamless Precision Steel Tube

Cold Drawn Seamless Precision Steel Tube

Honed Tubes In Stock I ntroduction WUXI HENGTONG PETROLIC MACHINERY manufactures pre honed tubes, ready to hone tubes, honed tubes, skived and roller burnished tubes, chrome bar, piston rods and high-precision cold-drawn steel tubes, We are well-equipped with 300 ton, 150 ton, 65 ton, 20 ton of...

Product Details

Our goal is to satisfy our customers by offering golden service, good price and high quality for Hydraulic Steel Honed Tube, Ck20 Cold Drawn HonedTube, Hydraulic Chrome Rod. With enterprising thinking and challenging spirit, we will continue to create more advanced, more efficient and more perfect products, leading us to a brighter future. Welcome any inquiry to our company. With the efforts of all employees, our company has formed a relatively complete quality management system and realized one-stop production, supply and sales. Continuous improvement is our self-discipline.

Honed Tubes In Stock Introduction

WUXI HENGTONG PETROLIC MACHINERY manufactures pre honed tubes, ready to hone tubes, honed tubes, skived and roller burnished tubes, chrome bar, piston rods and high-precision cold-drawn steel tubes, We are well-equipped with 300 ton, 150 ton, 65 ton, 20 ton of cold drawing machine,9 meters CNC boring machines, 20 sets honing machines , one set furnace and advanced quality testing equipment, which combine cold drawn, cold-rolled, heat treatment and traditional machining process.

Honed Tubes In Stock For Hydraulic detail

Application: producing of hydraulic/ pneumatic cylinders, pumps, motor shells, transmission shafts and transmission roller steel pipes.

Original: Jiangsu, China

Certification: ISO9001.

Material: SAE1020, 20#, ST45, CK45, ST52, E355

Payment term: TT, LC

Delivery date: usually 20 to 40 days.

Packing: packed in bundle, oiled inside, with caps on both ends.

Market: Middle East/ Africa/Asia/South America/Europe/North America

MOQ: Depends on exact size and material.

Size and Tolerance:

Working

method

Cylinder ID （mm）

Length

（m）

Straightness

（mm/m）

Tolerance

on ID

Tolerance

on WT

Roughness

（μm）

Cold drawn

40-320

≤12M

0.2-0.5

/

±5%

0.8-1.6

Cold rolling

30-100

≥12M

0.2-0.5

/

±5%

0.8-1.2

cold drawn-

honed

40-500

8M

0.2-0.3

H8-H9

±5%

0.2-0.8

Cold drawn-skived

40-400

7M

0.2-0.3

H8-H9

±5%

≤0.4

Deep hole

boring- honed

320-400

8M

0.2-0.3

H7-H9

±8%

≤0.8

Deep hole

boring- skived

320-400

7M

0.2-0.3

H8-H9

±8%

≤0.4

Mechanical Properties:

Final Supply
Condition

Cold finished
（Hard）（BK）

Cold drawn and stress-relieved （BK+S or + SR）

Hardness HB

Parameters

T.S
obN/mm2

Elongation
δ5%

T.S
obN/mm2

Y.S
OsN/mm2

Elongation
δ5%

20# (A106B, ST45, E255)

≧550

≧8

≧520

≧375

≧12

175

45#(CK45)

≧650

≧5

/

/

/

207

Q345B(ST52, E355)

≧640

≧5

≧600

≧520

≧15

190

25Mn

≧640

≧5

≧600

≧510

≧15

195

27SiMn

≧840

≧5

≧800

≧720

≧10

230

Chemical Properties:

Material

C%

Mn%

Si%

S%

P%

20#

0.17-0.23

0.35-0.65

0.17-0.37

≤0.035

≤0.035

ST45

≤0.21

≥0.4

≤0.35

≤0.025

≤0.025

E255

≤0.21

0.4-1.1

≤0.35

≤0.025

≤0.025

45#

0.42-0.50

0.50-0.80

0.17-0.37

≤0.035

≤0.035

Q345B

≤0.20

≤1.70

≤0.50

≤0.035

≤0.035

E355

≤0.22

≤1.6

≤0.55

≤0.025

≤0.025

ST52

≤0.22

≤1.6

≤0.55

≤0.04

≤0.04

25Mn

0.22-0.29

0.70-1.0

0.17-0.37

≤0.035

≤0.035

27SiMn

0.24-0.32

1.10-1.40

1.10-1.40

≤0.035

≤0.035

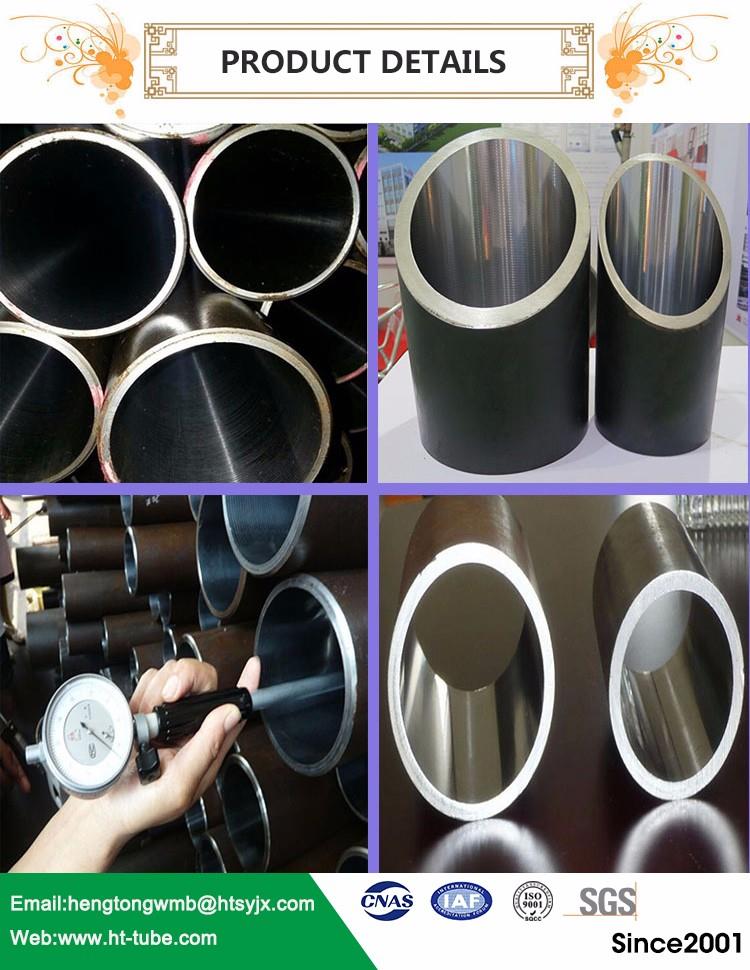

Chrome Plated Tube.jpg

Our Advantage

1. We has two factories of 40000 square meters and totally 150 employees to promise the Honed Tubes In Stock best quality control;

2. According to the cylinder pressure and inside diameter size ,different hydraulic cylinder honed tube Would be choosed ;

3. Our motivation is --- customers’ satisfaction smile;

4. Our believing is --- pay attention to every detail;

5. Our wish is ----perfect co-operation.

Our team.jpg

Please feel free to send us your detailed requirements, you would be satisfied with our service.

Cold Drawn Seamless Precision Steel Tube have a wide range of market areas, and are highly praised by consumers. We are sincerely invited to join us to realize our ambition. Our company always adhere to the quality of life, market-oriented, we win the long-term cooperation of customers with excellent product quality, good reputation and independent innovation consciousness. With sincere service, perfect management and professional attitude, we meet the needs of new and old customers to the maximum extent, ensure the interests of customers and establish a good market reputation and brand effect.
