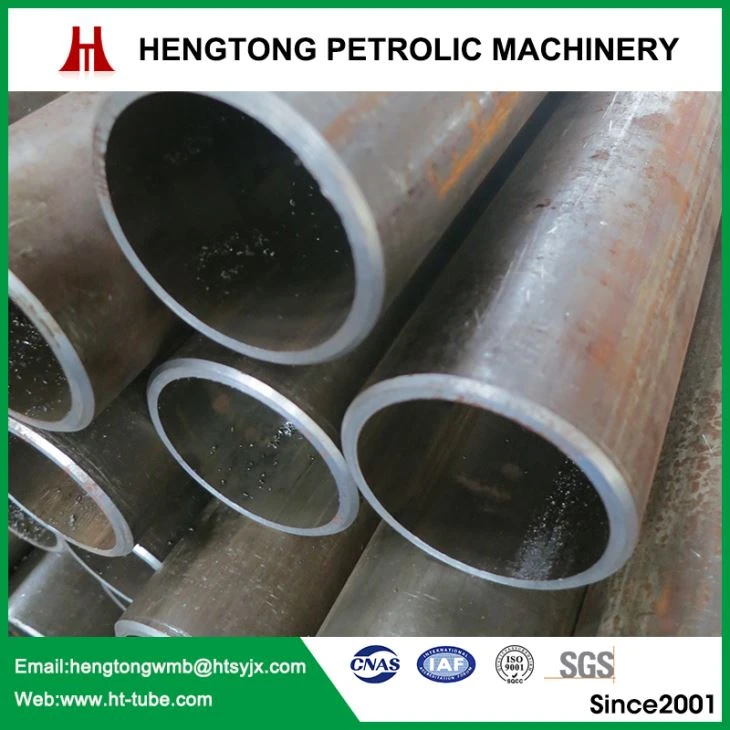

DIN2391 St52 Precision Tube Cold Drawn Seamless Steel Pipe
Product Details
We actively and extensively collect customer needs and promote technological innovation to create high-quality and satisfactory Skiving And Roller Burnishing Tube, Hydraulic Cylinder Honed Pipe, 42CrMo cold drawn steel pipe. We implement the management culture of 'people-oriented, science and technology leading', and are committed to providing better products and more intimate services for global consumers。 We are always ready to construct extended and steady co-operation relations with any possible customers in the related fields. Our company is equipped with pre-sale technical support and after-sale service, so we have established a good reputation in the industry. We have always been adhering to the concept of 'focusing on user needs and enhancing customer competitiveness', constantly challenging ourselves and developing. We are willing to cooperate sincerely with merchants all over the world to create a better tomorrow!
St52 Cold Drawn Pipe Introduction
Cold drawn steel pipe is produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009 , EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose. ID and OD tolerance could be decided by customer. IF you are looking for seamless cold drawn pipe for hydraulic cylinder pipes or pneumatic cylinder tubes, please contact us without any hesitation.
St52 Cold Drawn Pipe Technical Parameters and Details
Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.
Original: Jiangsu, China
Certification: ISO9001.
Material: SAE1020, 20#, ST45, CK45, ST52, E355
Payment term: TT, LC
Delivery date: usually 20 to 40 days.
Packing: packed in bundle, with caps on both ends.
Market: Middle East/ Africa/Asia/South America/Europe/North America
MOQ: Depends on exact size and material.
Size and Tolerance:
|
Working method |
Cylinder ID （mm） |
Length （m） |
Straightness （mm/m） |
Tolerance on ID |
Tolerance on WT |
Roughness （μm） |
|
Cold drawn |
40-320 |
≤12M |
0.2-0.5 |
/ |
±5% |
0.8-1.6 |
|
Cold rolling |
30-100 |
≥12M |
0.2-0.5 |
/ |
±5% |
0.8-1.2 |
|
cold drawn- honed |
40-500 |
8M |
0.2-0.3 |
H8-H9 |
±5% |
0.2-0.8 |
|
Cold drawn-skived |
40-400 |
7M |
0.2-0.3 |
H8-H9 |
±5% |
≤0.4 |
|
Deep hole boring- honed |
320-400 |
8M |
0.2-0.3 |
H7-H9 |
±8% |
≤0.8 |
|
Deep hole boring- skived |
320-400 |
7M |
0.2-0.3 |
H8-H9 |
±8% |
≤0.4 |
Cold drawn steel pipe characteristics
1. The inside tolerance could be decided by customer. It depends on if it is ready for hone or ready for skived.
2. ID size from 50 to 280mm, OD size from 60 to 370mm, totally has more than 200 sizes.
3. Length could be fixed length of random length.
Experience and markets
Our factory has more than 20years working experiences on researching and selling. Products are well sailed all over the world, got many compliments from customers.
Our Advantages
a. Extensive production experience: we are specialized in honed tubes, skived tubes, cold drawn pipe, and chrome bar with an experience of 20 years.
b. Complete production facilities: owning cold drawn machine, skived and roller burnished machine, honing machine, precision centerless grinding machine, straightening machine, fine polishing machine, precision lathe, milling and drilling machine, roller press and other advanced equipments. Our technicians will do regular scheduled maintenance on these machines to guarantee them work well.
c. High quality raw material: we mainly choose raw material from big steel factory, such as AN STEEL, TPCO, BAO STEEL, SHA STEEL, which are best and largest raw material manufacturer in China.
d. Strict Physical/Chemical testing procedures: meeting the requirements of the product design and process, providing reliable testing data.
e. Short Delivery time: Usually one container 20 days. We also stock some standard-sized tubes and bars.
f. Safe packing: anti-rust oil be spread on tubes and bars before shipping, plastic caps on tube ends to protect inside surface, each bar be protected with cardboard tube.
We are a professional company for the production of DIN2391 St52 Precision Tube Cold Drawn Seamless Steel Pipe with complete and scientific quality management system. Our company takes innovation and enterprising, honesty and mutual benefit as the principle and is famous for our high quality business positioning and integrity. We're generally ready to build lengthy and steady co-operation relations with any possible shoppers within the associated fields.
