High Chrome Steel Impact Crusher Replacement Spare Parts Ceramic Inserted Blow Bar Np1213
Product Details
Our rewards are reduce selling prices, dynamic revenue team, specialized QC, sturdy factories, superior quality services for Skived Rolling Burnished Hydraulic Cylinder Tube, Precision Seamless Steel Honing Tube, Ck20 Steel Tube. We have always taken it as our duty to contribute to the satisfaction of consumer needs and the economic and social development of the country. Our brand adheres to the firm belief of 'carrying dreams, technology creates brilliance'.

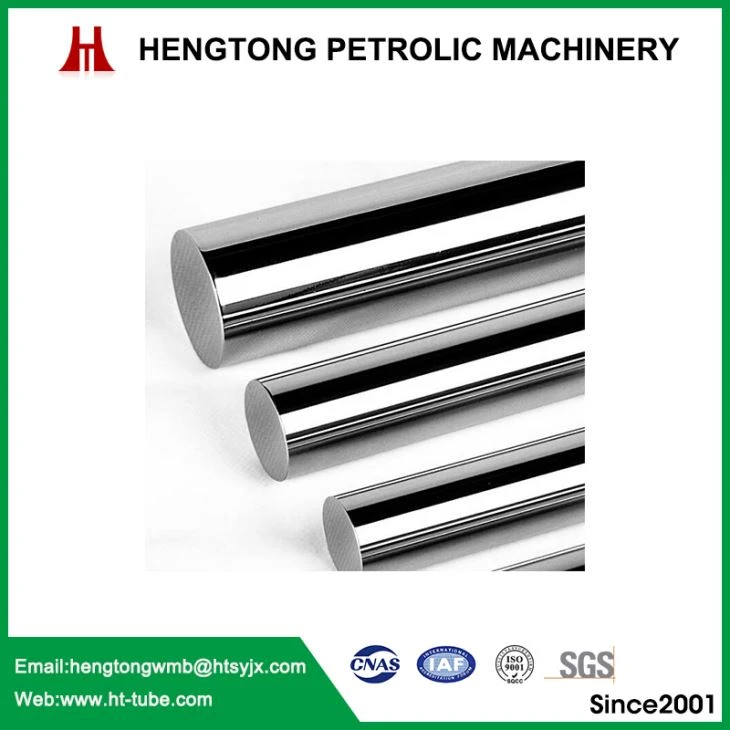

Chrome Plated Steel Bar Introduction
Chrome Plated Steel Bars can be divided into standard bar, induction bar and tempered & quenched bar. Surface of bar goes through special grinding and hard chrome plating process, and then mirror polishing. They always work together with precision tubes.
Chrome Plated Steel Bar technical parameters and Details
Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.
Original: Jiangsu, China
Certification: ISO9001.
Material: CK45, ST52, E355, 42CrMo4
Payment term: TT, LC
Delivery date: usually 20 to 40 days.
Packing: each packed in peper sleeve, and then in bundle.
Market: Middle East/ Africa/Asia/South America/Europe/North America
MOQ: Depends on exact size and material.
Mechanical Properties:
Material | T.S (MPA) | Y.S (MPA) | Elongation % | CHARPY | CONDITION |
CK45 | ≥610 | ≥355 | ≥15 | >41J | NORMALIZE |
CK45 | ≥800 | ≥630 | ≥20 | >41J | Q + T |
ST52 | ≥500 | ≥355 | ≥22 | NORMALIZE | |
20MnV6 | ≥750 | ≥590 | ≥12 | >40J | NORMALIZE |
42CrMo4 | ≥980 | ≥850 | ≥14 | >47J | Q + T |
40Cr | ≥1000 | ≥800 | ≥10 | Q + T |
Chemical Properties:
Material | C% | Mn% | Si% | S% | P% | V% | Cr% |
CK45 | 0.42-0.50 | 0.50-0.80 | ≤0.04 | ≤0.035 | 0.035 | ≤ 0.25 | |
ST52 | ≤0.22 | ≤1.6 | ≤0.55 | ≤0.04 | ≤0.04 | ||
20MnV6 | 0.16-0.22 | 1.30-1.70 | 0.10-0.50 | ≤0.035 | ≤0.035 | 0.10-0.20 | ≤0.30 |
42CrMo4 | 0.38-0.45 | 0.60-0.90 | 0.15-0.40 | ≤0.035 | ≤0.035 | 0.07-0.12 | 0.90-1.20 |
40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | 0.80-1.10 |

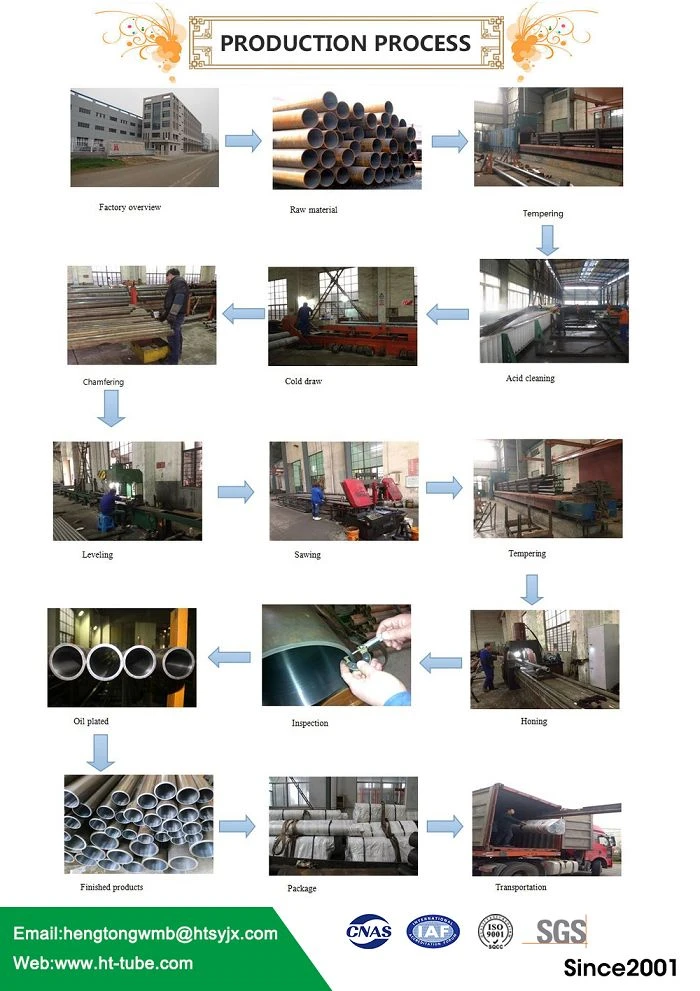

Production process
Raw material –peeling – straightening – quenched and tempered – cutting – grinding –straightening – grinding – polishing – chrome plating – polishing - oiled plated - packing

Our Advantage
1. We has two factories of 40000 square meters and totally 150 employees to promise the Honed Tubes In Stock best quality control;
2. According to the cylinder pressure and inside diameter size ,different hydraulic cylinder honed tube Would be choosed ;
3. Our motivation is --- customers’ satisfaction smile;
4. Our believing is --- pay attention to every detail;
5. Our wish is ----perfect co-operation.
We are driven by technological innovation and backed by scientific management to promote the continuous, rapid and healthy development of the enterprise. We are willing to sincerely cooperate with new and old customers to work hand in hand for the progress and development of the High Chrome Steel Impact Crusher Replacement Spare Parts Ceramic Inserted Blow Bar Np1213 industry. After years of steady development, we have established strategic cooperation relationship with many famous brands at home and abroad. We hope that in the future, we will become your best partner and grow together. We stick to the goal of stable quality, considerate service, continuous improvement and continuous innovation.
Hot Tags: chrome plated steel bar, China, manufacturers, suppliers, factory, price, 1045 Chrome Plated Steel Tube, Self Aligned Welding Rotator, Ck45 Cold Drawn Pipe, Turning roll, Seamless Steel Tube For Hydraulic Cylinder, drilling stator tube
