Precision Honed Welded Clevis Style 3000 Psi Hydraulic Cylinder

Precision Honed Welded Clevis Style 3000 Psi Hydraulic Cylinder

Hard Chrome Plated Honed Tubes Introduction Chrome plated Honed Tubes are presicion tubes with smooth inside and with chrome plated , they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced...

Product Details

All our customers are located worldwide and are very satisfied because of the excellent price-performance ratio of our Chrome Plated Cylinder Barrel, Induction Chrome Bar, Self Aligned Tank Welding Rotator. Our company strives to be at the forefront of the market, only in the field we reach, can we live up to the trust and friendship of consumers. We scrupulously follow the quality policy of 'carefully manufacture, to manage attentively, to feel relieved use, warm-hearted service', maximum satisfies the user's needs. Our company has advanced automation equipment and professional technical team, and we adhere to the national standards as a guide. We've been looking forward to doing business with you!

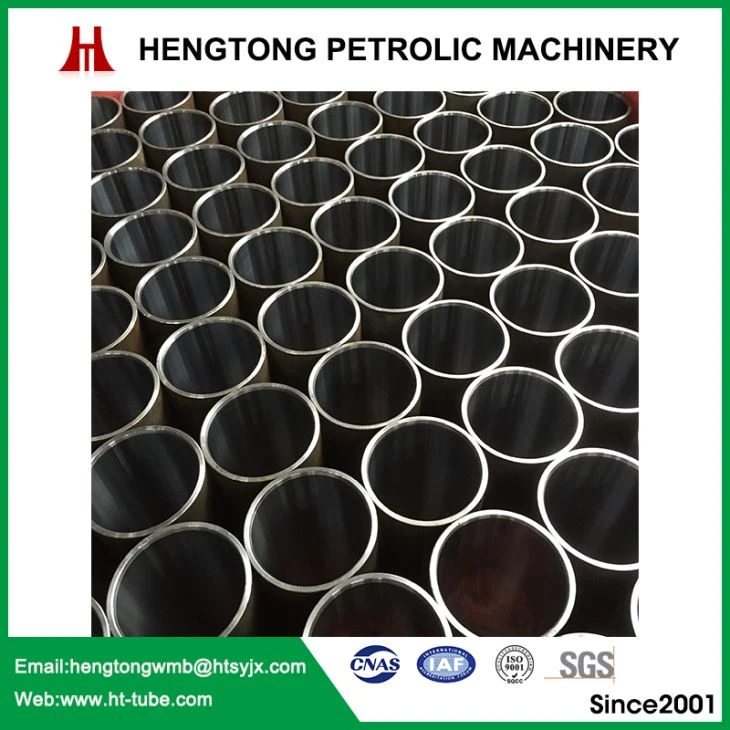

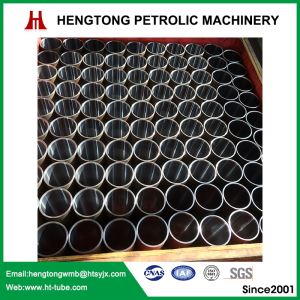

Hard Chrome Plated Honed Tubes Introduction

Chrome plated Honed Tubes are presicion tubes with smooth inside and with chrome plated , they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009 , EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose. IF you are looking for chrome plated tubes for hydraulic cylinder pipes or pneumatic cylinder tubes, please contact us without any hesitation.

Hard Chrome Plated Honed Tube technical parameters and Details

Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.

Chrome thickness: usually 15 to 20 microns.

Original: Jiangsu, China

Certification: ISO9001.

Material: SAE1020, 20#, ST45, CK45, ST52, E355

Payment term: TT, LC

Delivery date: usually 20 to 40 days.

Packing: packed in bundle, oiled inside, with caps on both ends.

Market: Middle East/ Africa/Asia/South America/Europe/North America

MOQ: Depends on exact size and material.

Inside hard chrome plated honed tube for hydraulic cylinder

(Usually H8 ID tolerance, Roughness 0.2-0.4 um, BKS/ SR condtion, ID40-400mm)

Material & Chemical Composition:

DIN2391 standard ST52, EN10305 standard E355, 16Mn, ASTM A106B, C20/20#, CK45

Material

C

Si

Mn

S(≤)

P(≤)

Cr

Ni

Mo

other

A106B / C20#

0.17—0.23

0.17—0.37

0.35—0.65

0.035

0.035

≤0.25

≤0.30


Cu≤0.25

CK45#

0.42—0.50

0.17—0.37

0.50—0.80

0.035

0.035

≤0.25

≤0.30


Cu≤0.25

Q345B

≤0.20

≤0.55

1.00—1.60

0.040

0.040

V:0.02-0.15

Nb:0.015-0.06

Ti:0.02-0.20

Alt≥0.015

ST52

E355

16Mn

≤0.20

≤0.55

1.00—1.60

0.045

0.045

V:0.02-0.15

Nb:0.015-0.06

Ti:0.02-0.20

16Mn

25Mn

0.22—0.30

0.17—0.37

0.70—1.00

0.035

0.035

≤0.25

≤0.25



27SiMn

0.24—0.32

1.10—1.40

1.10—1.40

0.030

0.030





42SiMn

0.39—0.45

1.10—1.40

1.10—1.40

0.030

0.030





42CrMo

0.38—0.45

0.17—0.37

0.50—0.80

0.025

0.025

0.90—1.20


0.15—0.25


Usual Tube Sizes

Most usual sizes in our factory:

40*50

90*110

140*170

190*215

40*55

95*110

145*170

190*220

50*60

95*115

150*170

190*225

50*65

100*110

150*175

200*220

55*70

100*114

150*180

200*225

60*70

100*115

155*180

200*230

60*75

100*120

160*175

200*245

60*78

100*125

160*180

200*250

63*73

105*125

160*185

220*250

63*75

110*125

160*190

220*270

63*76

110*130

160*195

225*250

63*78

115*130

165*190

240*273

65*80

115*135

165*205

250*290

70*80

120*140

170*200

250*300

70*82

125*140

180*200

260*300

70*85

125*145

180*205

280*323

70*90

125*150

180*210

280*355

75*90

130*150

180*215

300*350

80*92

130*155

180*220

200*213

80*95

130*160

185*205

200*216

80*100

135*160

185*215

250*266

85*100

140*160

185*220

300*320

90*105

140*165

190*210

350*370


With many years' effort, we have attained full experiences and abilities in developing our Precision Honed Welded Clevis Style 3000 Psi Hydraulic Cylinder according to customer's specifications. We take product quality and development innovation as the core of enterprise development, adhere to the scientific and technological innovation to win the market. No matter in the product design and production or in the process of sales and service, we always adhere to customer-oriented and meet the requirements of customers with novel and unique products and high-quality and efficient service.

Hot Tags: hard chrome plated honed tube, China, manufacturers, suppliers, factory, price, Ck20 Cylinder Barrel, Hydraulic Cylinder Rod, Seamless Honed Pipe Cold Drawn Tube, Hydraulic Cylinder Bar, 16Mn Steel Honed Tube, Ck20 Steel Tube
