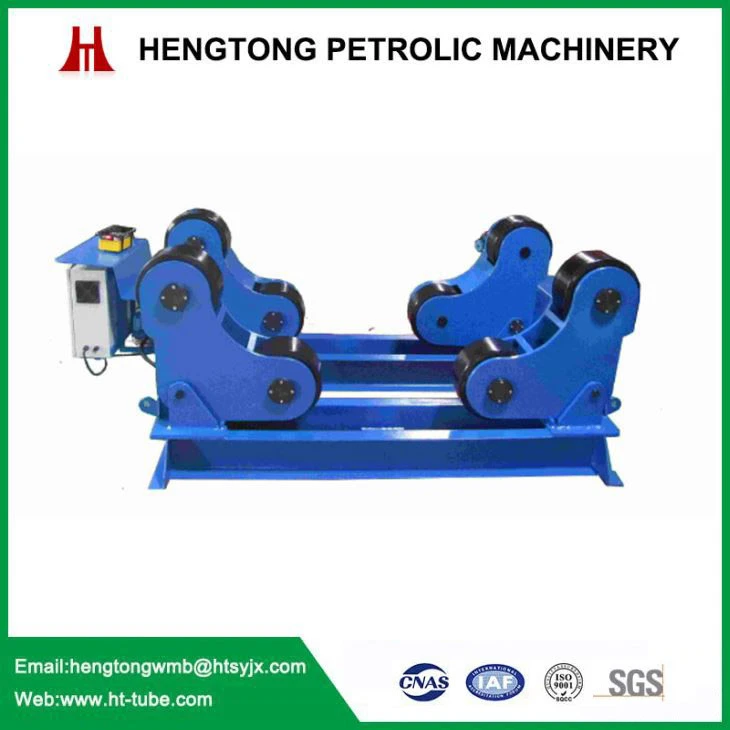

Conventional Welding rotator welding pipe turning rolls Introduction

The Conventional Welding rotator welding pipe turning rolls is the displacement equipment which uses the friction force between the active roller and the welding parts to drive the workpiece to rotate. According to the diameter of the workpiece, the rotation Angle of the wheel group can be adjusted automatically, and the heart can be adjusted automatically. It is mainly used for pipe, container, boiler, oil tank, etc of cylindrical workpiece or welding assembly, when with the welding manipulator, welding power source, can achieve the workpiece inside and outside longitudinal seam and the internal and external circular seam welding.

Conventional Welding rotator welding pipe turning rolls Specifications

model

Maxloding

capacity

(kg)

Applicable

Workpiece Dia

(mm)

Roller Dia&width(mm)

Roller

speed

(m/h)

Motor

power

(kw)

Speed

adjust

Rubber roller

Metal roller

HGZ-5

5000

¢250-2300

¢250*100

2*¢240*20

100-1000

2*0.27

Variable

Frequency

Drive

(VFD)

HGZ-10

10000

¢320-2800

¢300*120

2*¢290*25

100-1000

2*0.55

HGZ-20

20000

¢500-3500

¢350*120

2*¢340*30

100-1000

2*0.75

HGZ-40

40000

¢600-4200

¢400*120

2*¢390*40

100-1000

2*1.5

HGZ-60

60000

¢750-4800

¢450*120

2*¢440*50

100-1000

2*2.2

HGZ-80

80000

¢800-5000

¢500*120

2*¢490*60

100-1000

2*3

HGZ-100

100000

¢800-5500

¢500*120

2*¢490*70

100-1000

2*4

HGZ-200

150000

¢800-6500

/

¢700*250

100-1000

2*4

HGZ-300

300000

¢800-6500

/

¢800*300

100-1000

2*5.5

HGZ-500

500000

¢1000-8000

/

¢1000*350

100-1000

2*7.5

HGZ-800

800000

¢1000-8000

/

¢1000*400

100-1000

2*11

Conventional Welding rotator welding pipe turning rolls Advantages

(1)    Rotators mainly consists of power unit, idler unit, electric control box and hand control panel.

(2)    rotators (turning rolls) are used for the inside and outside circumferential and longitudinal welding.

(3)    The distance of rollers can be adjusted automatically according to the diameter of workpiece.

(4)    Variable Frequency drive speed control, being stable and precise.

(5)    rubber, steel or PU wheel, it is all on customers' decision.

(6)    It can be designed as movable type.

(7)    Hand control panel facilitates operation.
