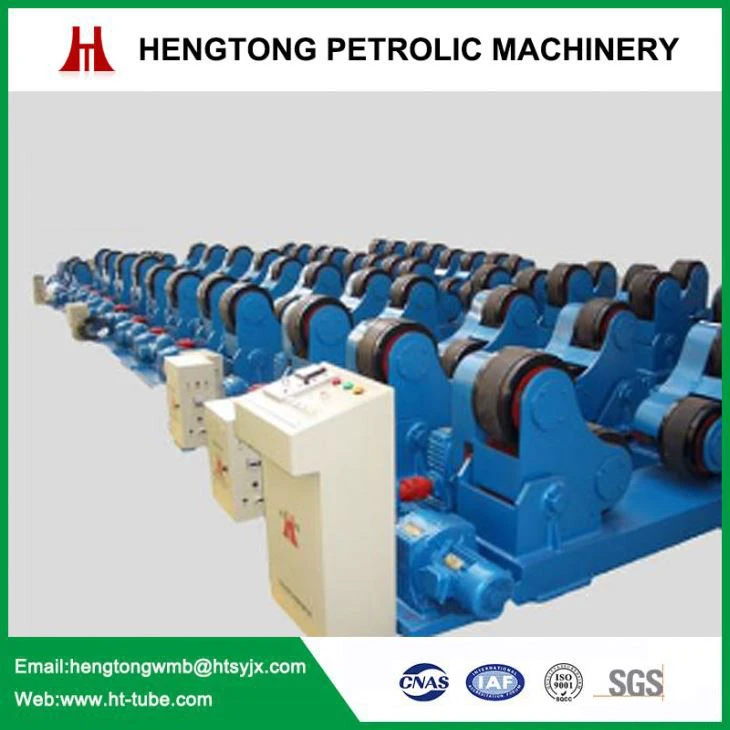

High Effciency Automatic Pipe Self Aligned Welding Rotator Introduction
High Effciency Automatic Pipe Self Aligned Welding Rotator is designed on the base of welding requirements of pressure vessels, and absorbs advantage of similar products both from domestic and internation market. The rotation of vessel is carried out by friction of power unit and vessel. Rollers?material could be rubber, PU or steel.
High Effciency Automatic Pipe Self Aligned Welding Rotator technical parameters and Details
Type:?Welding Positioner
Condition:?New
Place of Origin:?Jiangsu, China (Mainland)
Brand Name:?Hengtong
Model Number:?HGK-2
Usage:?welding
Dimensions:?1500*800*550 900*400*550
Weight:?200KG
Certification:?CE,SGS,ISO9001
After-sales Service Provided:?Overseas third-party support available
Name:?adjustable welding turning roll/welding rotator
Max loading capacity:?2000kg
Applicable workpiece dia.:?150-2000
Roller speed:?6-60m/h
Motor power:?2*0.18kw
Roller diatance adjust:?Manual lead screw or bolt grading
Speed adjust:?VFD
Treatment:?Sandblast
Roller material:?rubber, metal ,PU
Packaging & Delivery
Packaging Details | wooden pallent and plywood box for large size machines and plywood packing for small or medium size ones | |
Delivery Time | within 20 days |
