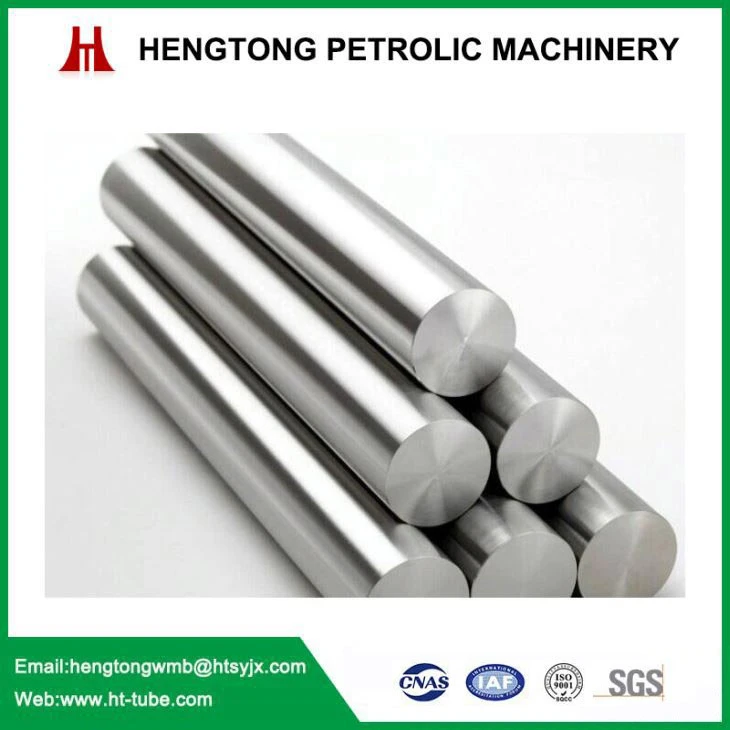

Chrome Steel Rod

Chrome Steel Rod

Chrome Steel Rod Introduction Chrome plated bars can be divided into standard bar, induction bar and tempered & quenched bar. Surface of bar goes through special grinding and hard chrome plating process, and then mirror polishing. They always work together with precision tubes. Chrome Steel...
Chat Now

Product Details

Chrome Steel Rod Introduction

Chrome plated bars can be divided into standard bar, induction bar and tempered & quenched bar. Surface of bar goes through special grinding and hard chrome plating process, and then mirror polishing. They always work together with precision tubes.

Chrome Steel Rod technical parameters and Details

Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.

Original: Jiangsu, China

Certification: ISO9001.

Material: CK45, ST52, E355, 42CrMo4

Payment term: TT, LC

Delivery date: usually 20 to 40 days.

Packing: each packed in peper sleeve, and then in bundle.

Market: Middle East/ Africa/Asia/South America/Europe/North America

MOQ:  Depends on exact size and material.

Chemical Properties:

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

CK45

0.42-0.50

0.50-0.80

≤0.04

≤0.035

0.035


≤ 0.25

ST52

≤0.22

≤1.6

≤0.55

≤0.04

≤0.04



20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

≤0.035

≤0.035

0.10-0.20

≤0.30

42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

≤0.035

≤0.035

 0.07-0.12

0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37

≤0.035

≤0.035


0.80-1.10

Chrome plated bar characteristics

PRODUCTION NAME: chrome bar , Chrome shaft,chrome piston rod

PRODUCT SIZE : φ6-φ250

SUPPLY CONDITION:

Standard chrome plated; induction hard; quenched and tempered

CHROME THICKNESS:

Standard 20 to 30 microns, special requirement depends on customers

SURFACE ROUGHNESS: Ra≤0.4 micron

TOLERANCES ON DIA: ISO f7 on the diameter

OVALITY : Half of the tolerance ISO f7

STRAIGHTNESS: ≤0.2MM/M

SURFACE HARDNESS :800-1150HV

Experience and markets

Our factory has more than 20years working experiences on researching and selling. Products are well sailed all over the world, got many compliments from customers.

Our team.jpg

Our Advantages

a. Extensive production experience: we are specialized in honed tubes, skived tubes, cold drawn pipe, and chrome bar with an experience of 20 years.

b. Complete production facilities: owning cold drawn machine, skived and roller burnished machine, honing machine, precision centerless grinding machine, straightening machine, fine polishing machine, precision lathe, milling and drilling machine, roller press and other advanced equipments. Our technicians will do regular scheduled maintenance on these machines to guarantee them work well.

c. High quality raw material: we mainly choose raw material from big steel factory, such as AN STEEL, TPCO, BAO STEEL, SHA STEEL, which are best and largest raw material manufacturer in China.

d. Strict Physical/Chemical testing procedures: meeting the requirements of the product design and process, providing reliable testing data.

e. Short Delivery time: Usually one container 20 days. We also stock some standard-sized tubes and bars.

f. Safe packing: anti-rust oil be spread on tubes and bars before shipping, plastic caps on tube ends to protect inside surface, each bar be protected with cardboard tube.
