Chrome Plated Steel Rod

Chrome Plated Steel Rod

Chrome Plated Steel Rod Introduction Chrome plated bars can be divided into standard bar, induction bar and tempered & quenched bar. Surface of bar goes through special grinding and hard chrome plating process, and then mirror polishing. They always work together with precision tubes. Chrome...
Chat Now

Product Details

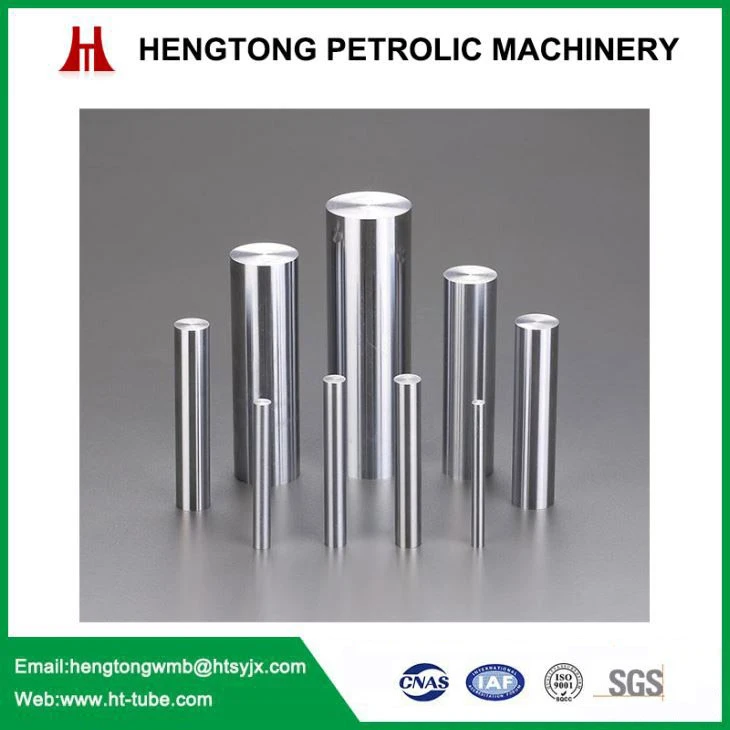

Chrome Plated Steel Rod Introduction

Chrome plated bars can be divided into standard bar, induction bar and tempered & quenched bar. Surface of bar goes through special grinding and hard chrome plating process, and then mirror polishing. They always work together with precision tubes.

Chrome Plated Steel Rod technical parameters and Details

Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.

Original: Jiangsu, China

Certification: ISO9001.

Material: CK45, ST52, E355, 42CrMo4

Payment term: TT, LC

Delivery date: usually 20 to 40 days.

Packing: each packed in peper sleeve, and then in bundle.

Market: Middle East/ Africa/Asia/South America/Europe/North America

MOQ:  Depends on exact size and material.

Mechanical Properties:

Material

T.S  (MPA)

Y.S  (MPA)

Elongation %

CHARPY

CONDITION

CK45

≥610

≥355

≥15

>41J

NORMALIZE

CK45

≥800

≥630

≥20

>41J

Q + T

ST52

≥500

≥355

≥22


NORMALIZE

20MnV6

≥750

≥590

≥12

>40J

NORMALIZE

42CrMo4

≥980

≥850

≥14

>47J

Q + T

40Cr

≥1000

≥800

≥10


Q + T

 Chemical Properties:

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

CK45

0.42-0.50

0.50-0.80

≤0.04

≤0.035

0.035


≤ 0.25

ST52

≤0.22

≤1.6

≤0.55

≤0.04

≤0.04



20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

≤0.035

≤0.035

0.10-0.20

≤0.30

42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

≤0.035

≤0.035

 0.07-0.12

0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37

≤0.035

≤0.035


0.80-1.10

Production process

Raw material –peeling – straightening – quenched and tempered – cutting – grinding –straightening – grinding – polishing – chrome plating – polishing - oiled plated - packing

Production Process(001).jpg

FAQ

1. Q:Are you a manufacturer, trading company or a third party?

A:We are a manufacturer, and we have builded up our company since 2006.

2. Q:Where is your factory located?

A:Our factory address is : Hengtong road, Yangshan Town, Huishan District, Wuxi City, Jiangsu Province, China.

3. Q:How can i get to your factory?

A:Our factory is near shanghai Airport, and then you could take fast train from Shanghai to Wuxi Station.

4. Q:If i will need to stay in your place for few days, is that possible to book the hotel for me?

A:It’s always my pleasure, hotel booking service is available.
