Introduction

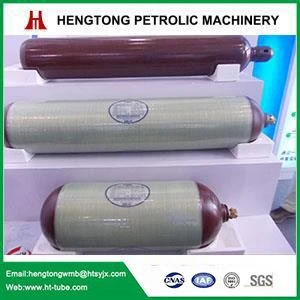

Cylinder again and mining enterprises, fire use, the medical field is widely used for storing a gaseous medium, the release device and media. high pressure gas tube is suitable for producing seamless steel pipe cylinder type high pressure vessel.
Technical Parameters
Outer diameter specification: Φ50-850mm Wall thickness: 3-55mm Outer diameter deviation: ±0.75% Wall thickness difference: -10% -+12.5% inner and outer diameter Roundness: 80% of the outer diameter tolerance is not exceeded: 2mm straightness: 1mm / 1m Surface quality: no cracks, folding, rolling, separation and stuttering.
Specification
Standard | Brand | Tensile strength (MPa) | Yield strength (MPa) | Elongation(%) |
GB 18248 | 37Mn | ≥750 | ≥630 | ≥16 |
34Mn2V | ≥745 | ≥530 | ≥16 | |
30CrMo | ≥930 | ≥785 | ≥12 | |
35CrMo | ≥980 | ≥835 | ≥12 |
Weight
Steel pipes shall be delivered in actual weight. According to the requirements of the purchaser, it is negotiated between the supplier and the buyer, and is indicated in the contract, and can also be delivered according to the theoretical weight.
